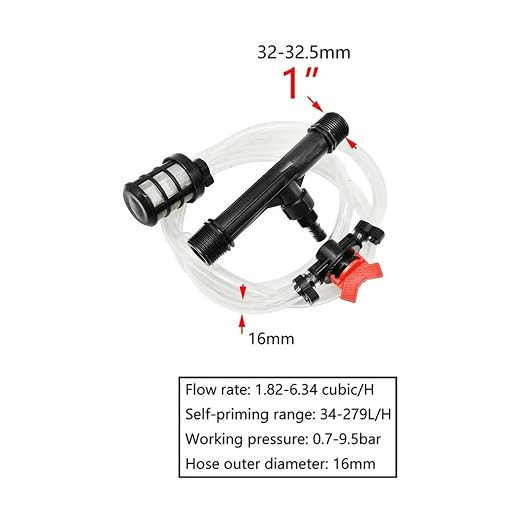

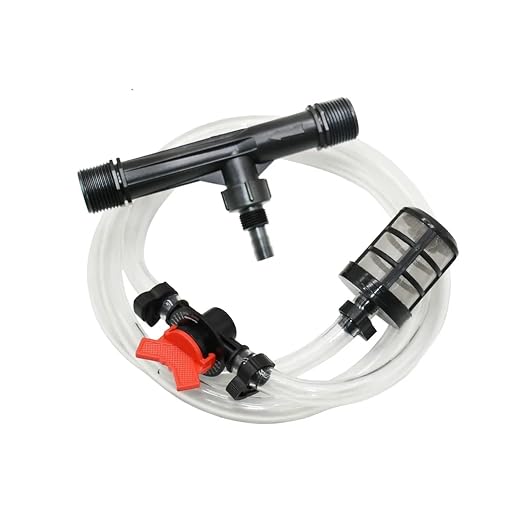

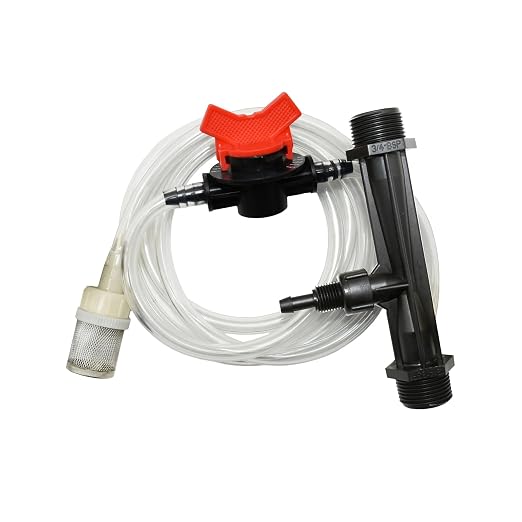

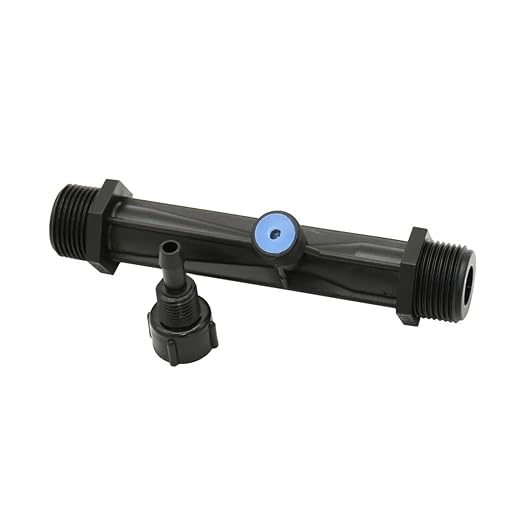

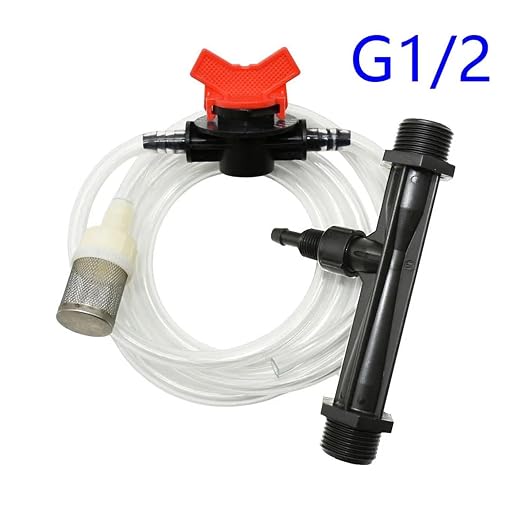

1/2 3/4 1 Irrigation Venturi Fertilization System Automatic Fertilizer Venturi Fertilizer Injector Mixer Injectors 1set(1I2)

- 1. The Venturi fertiliser can be installed in parallel with the water supply pipe control valve of the irrigation system. When used, the valve on the main water pipe is adjusted to form a suitable pressure difference before and after. - 2, can also be directly connected to the pipeline, using the vacuum and atmospheric pressure generated by the Venturi fertiliser, the fertilizer solution is evenly sucked into the pipeline system from the open fertilizer barrel for fertilization. - 3. Venturi fertiliser has the characteristics of low cost, convenient use and no need for additional power. - 4. In addition, the venturi filter suction pipe kit is also designed to control the valve to adjust the intake. - 5. The venturi type fertilizer applicator is installed in parallel with the water supply control valve at the entrance of the irrigation area of the irrigation system. When used, the control valve is closed to form a pressure difference before and after the control valve, so that the fertilizer dissolved in the water can be sucked into the Wenqiu. The inner fertilizer injector then flows into the water supply pipe.
