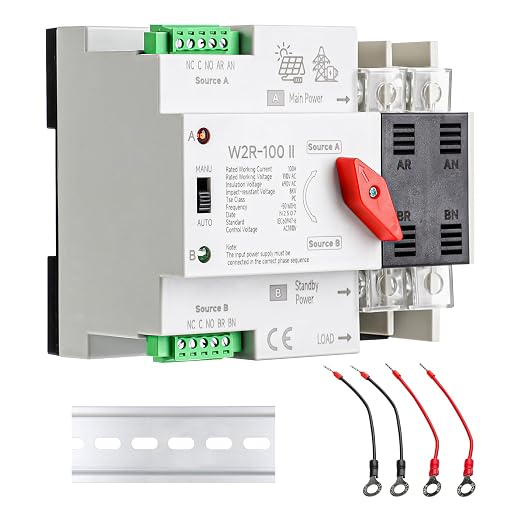

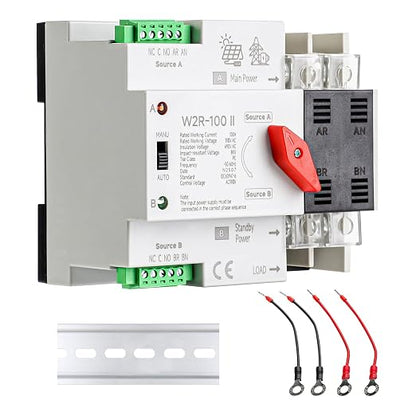

100Amp AC 110V Dual Power Automatic/Manual Transfer Switch 2P Mini ATS Solar Auto Automatic Transfer Switch for Home Generator 2POLE 100A 110Volt Din Rail Changeover Transfe 50/60Hz for Rv Lv Power

- Functions and Features: 100a 2p dual power auto transfer switch W2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 0.05 seconds to ensure the continuity. When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply. Both power supply A and power supply B can be connected to the mains/generator, with four wiring and 35mm DIN rail. - Automatic Mode: ac 110v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A. When auto power transfer switch 110v the normal power source A is working normally, A (red light) is always on; when the normal power source A is abnormal, A (green light) goes out and switches to the automatic power source B within 0.05 seconds, and B (green light) is on. When the normal power source A returns to normal, automatic changeover switch will automatically switch from the backup power source B to the normal power source A. - Manual Mode: 2p 100a 110v ats automatic/manual transfer switch use manual mode to make sure the left switch is in Manual. If you choose dual power automatic transfer switch 110v power source A, operate the red switch handle on the right to point to Sonrce A, and LED indicator A (red light) will be on. If you choose power source B, manually operate the red switch handle on the right to point the switch to Source B, and LED indicator B (red light) will be on. - 110V Over-Voltage and Under-Voltage Protection: automatic transfer switch 110v designed for home track installation, dedicated to PZ30 distribution box. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 100A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V). Please select the 2p 100a transfer switch dual power automatic changeover switch 110v with the corresponding specifications according to the actual working voltage you need. - Wide Application: This 2P dual power ATS ensures a stable power supply, interruptor de transferencia automatica is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment ; used in hospitals, low-temperature cold storage, data centers and emergency systems, 2p 100a 110v mini ats automatic transfer switch can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators. - Quality assurance and worry-free after-sales: Made of high-quality PA6, rv ats transfer switch 100 amp 110v has high strength, and lightweight but sturdy. If you have any questions about installation or use, or if you encounter any problems during use, our customer service team is always ready to assist.

Product description

ATS Mini ATS Automatic Transfer Switch Parameter Comparison and Selection

DIN+W2R 2P 100A AC110V

DIN+W2R 3P 100A AC110V

DIN+W2R 4P 100A AC110V

LED ATS 2P 100A AC110V

ATS 2P 100A AC110V

ATS G2R 2P 63A AC110V

ATS G2R 4P 63A AC110V
