10AWG Solar Extension Cable 100FT Solar Panel Wire 10 Gauge PV Wire

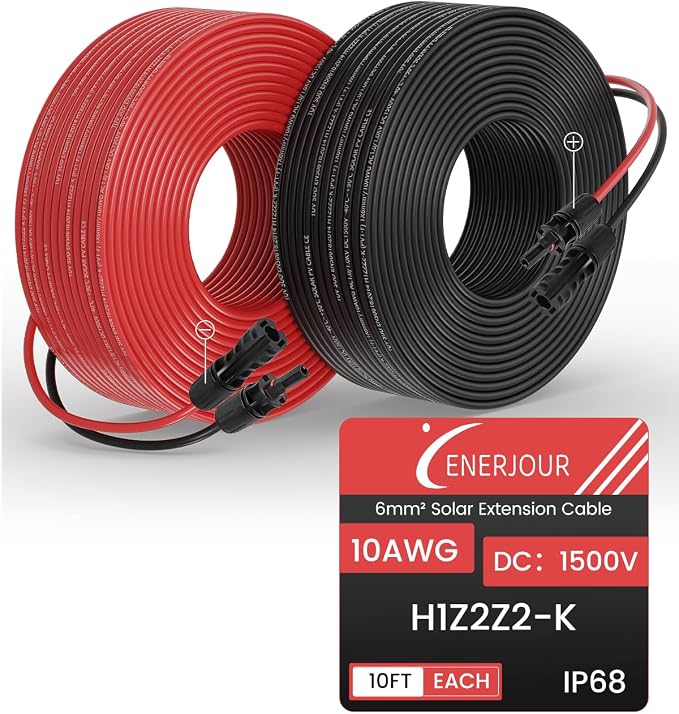

- PRODUCT SPECIFICATION: 10 AWG PV Cable,TUV/CE/RoHS certified. Wire gauge: 10 AWG (6 mm²). Test Voltage: 6500V. Rated: DC 1500V / AC 1000V, 54A. Conductor: ≤3.39Ω/km (20°C), 84/0.285mm tinned Cu. XLPO sheath/insulation. Operating temp: -40°F to 194°F - DOUBLE SHEATH STRUCTURE: 10 gauge solar extension cable feature double XLPO insulation/sheath, operating from -40°F to 194°F vs. 158°F for PVC-sheathed solar cables. The sheath provides IP68 water/moisture/UV/corrosion resistance, ensuring reliable performance in harsh environments - SAFE to USE: Our 10AWG solar wires is equipped with a pair of connectors. The male connector features an IP67 waterproof ring to prevent water/dust ingress. Rated for 1500V DC versus conventional 1000V, these connectors prioritize safety and reliability in solar panel wire connections - MULTI-FUNCTIONAL COMPATIBILITY: This solar panel cable is compatible with the vast majority of solar components (solar panels, inverters, etc.); ideal for rooftop, balcony/patio, solar farms, warehouse, pumps, generators, and marine/RV applications - 2 PIECE SET: 100Ft black + 100Ft red 10AWG solar wires with 2 pre-connected IP68 connector pairs. Plug-and-play for flexible panel placement. Disconnect by pressing the male connector’s lock with a hard thin rod/scissors

Product description

TUV and CE CERTIFIED

APPLICABLE SCENARIOS

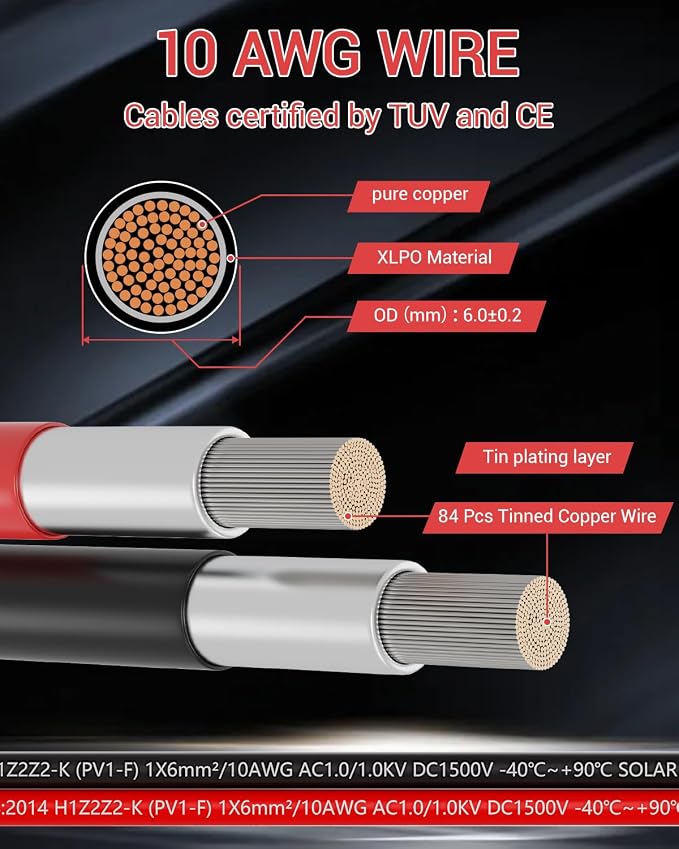

This 10AWG Solar Extension Cable is composed of 84 strands of 0.28mm tinned copper wire and comes with two pairs of MC4 connectors that can carry DC 1500V, making it perfect for your project.

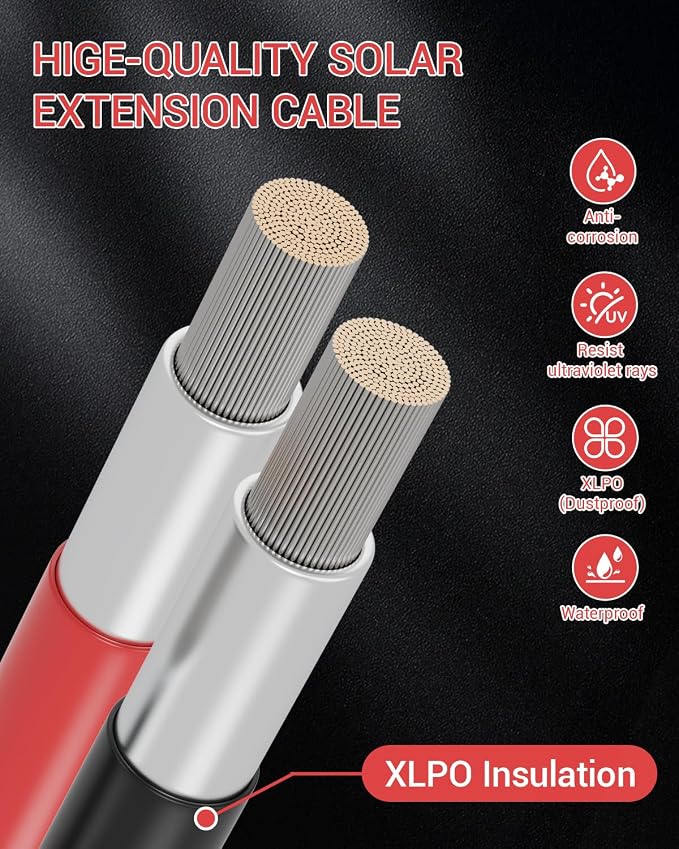

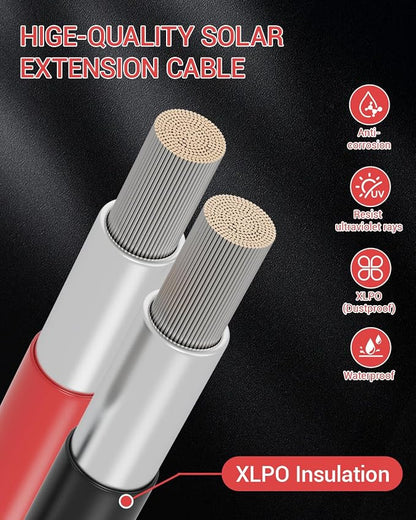

Solar panel pv cables are made of tin-plated copper conductors, which give them excellent conductivity, while double-layer XLPO insulation ensures your electrical safety.

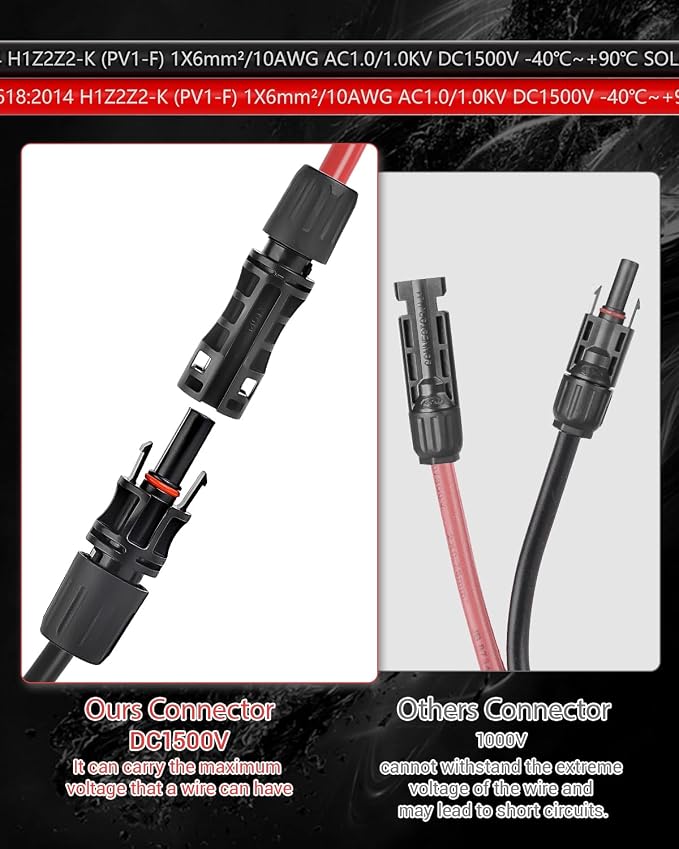

IP67 connector, Rated for DC 1500V versus conventional 1000V, these connectors prioritize safety and reliability in solar panel connections.

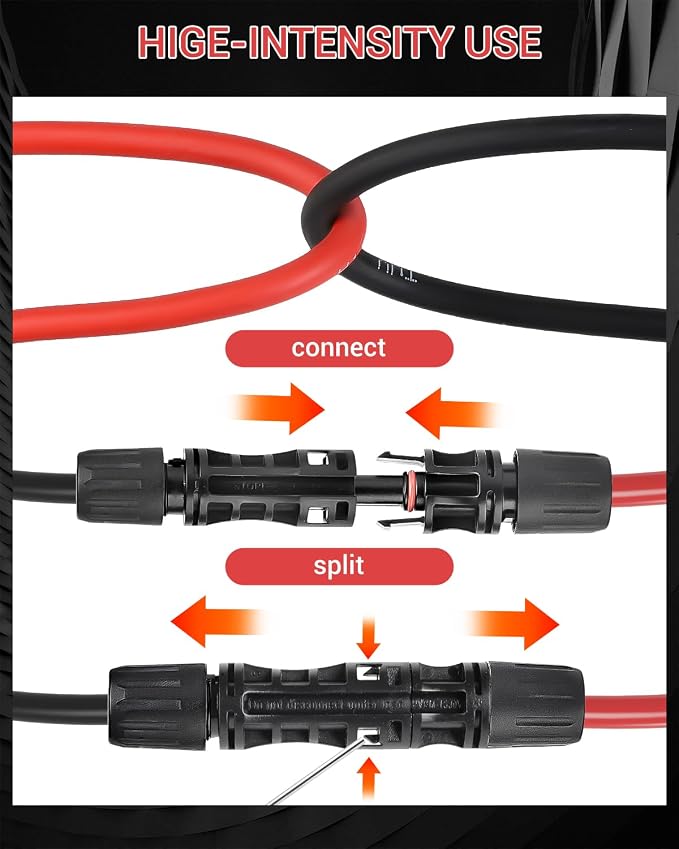

Note: Disconnecting the connector is a bit complicated and requires a small metal rod-like tool. A ballpoint pen can also be used.

The operating temperature range of solar wire is -40°F to 194°F.

Solar cable sheathing materials are waterproof, moisture-proof, UV-resistant, and corrosion-resistant. This ensures reliable operation even in harsh environments.

Solar extension cables are compatible with most solar panels, inverters, and other solar power system components, and can be widely used in solar power stations, photovoltaic connectors, rooftops, ships, outdoor power supplies, etc.
