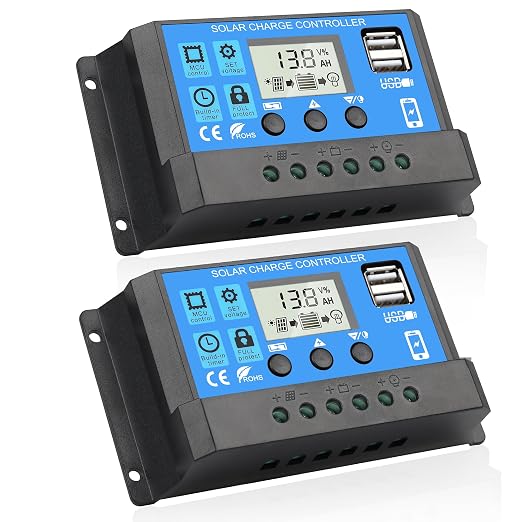

2PCS 30A PWM Solar Charge Controller 12V/24V Solar Panel Battery Controller with 2 USB Ports Auto Intelligent Regulator with LCD Display/Adjustable Parameter/Timer Setting/Multiple Load Modes Blue

- Compatible with 12V/24V Batteries: The 30A blue PWM controller is suitable for 12V and 24V systems. During the initial setup, you need to set the battery type and ensure there is sufficient voltage to correctly identify. The controller supports three types of batteries: OPEN, AGM, GEL lead-acid batteries(12V/24V automotive batteries), lithium-ion batteries (3 series 11.1V lithium batteries), and lithium iron phosphate batteries (4 series 12.8V). - 30A Intelligent Controller: Equipped with an industrial microcontroller, it features three levels of pulse width modulation charging modes (direct, boost, float), and intelligent charging function, enabling intelligent charging. All parameters of the controller can be adjusted, and the settings will be saved. After the battery runs out of power, there is no need to reset. It is suitable for various solar energy systems such as rooftops, campers, yachts, tents, trailers, etc. - Digital Display: Through the LCD screen, you can view real-time data, including battery power and voltage, load, output, solar panel status, etc. The controller parameters can be adjusted and the modes can be easily switched. This makes it convenient for you to manage the solar charging system. - Safe Usage: This 30A solar panel intelligent controller is equipped with multiple protections, including short circuit, open circuit, overcurrent, overcharge, reverse polarity, overdischarge, overload, undervoltage, overvoltage, and reverse current protection of dual MOSFET, all of which are self-recovering types and will not cause damage to the solar panel and battery charging system. It is more suitable for use in households, industries, businesses, etc. - High-quality Heat Dissipation Material: The housing of the 30A PWM controller is made of ABS material, which features high strength, impact resistance, anti-aging properties and a high ignition point. Additionally, the thickened alloy backplate on the rear of the controller helps enhance the heat dissipation effect, enabling the MOSFET switch to operate normally even at a maximum temperature of 60°C. - Dual 5V USB Charging Ports: The 30A intelligent controller has two 5V/1A (maximum current 2.5A) USB ports on its surface, which can charge your headphones, laptops, tablets, mobile phones or other 5V devices.

Product description

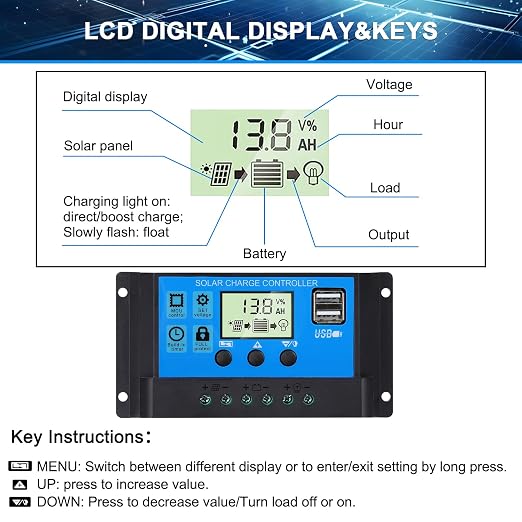

Liquid Crystal Display

Three Operation Buttons

Two USB Ports

Direct, Boost, Float Charging

Charge the Mobile Phone

Charge the Laptop Computer

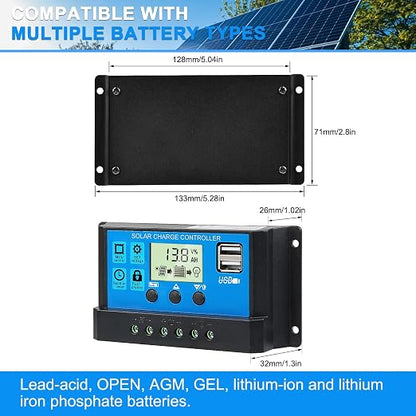

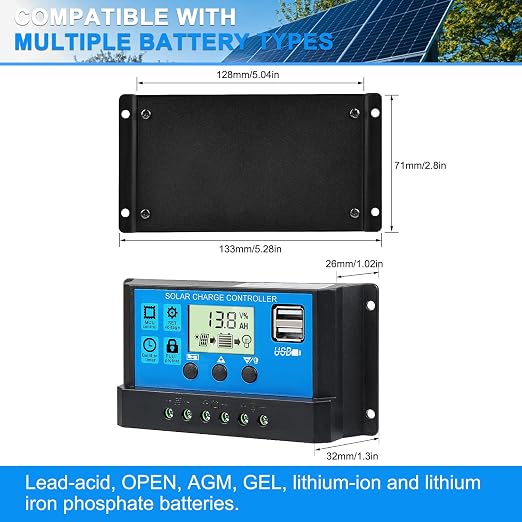

Compatible Battery type:

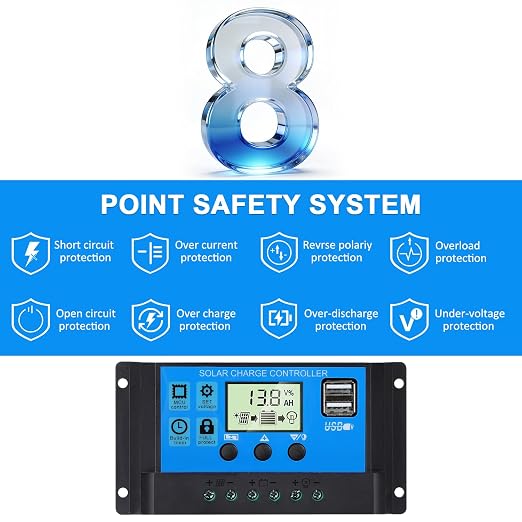

Temperature Protection

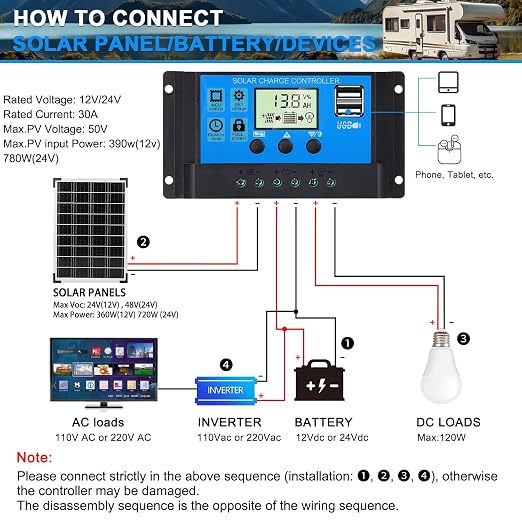

1. Connect the battery

2. Connect the solar panel

3. Connect to the DC load port

4. Complete system connection

12V/24V 30A PWM Solar Panel Battery Controller

TCEUMIK, 20A, 30A, 60A Controller Series:

Clearly display the status and data of the solar panel system, and view real-time information such as battery voltage and load conditions.

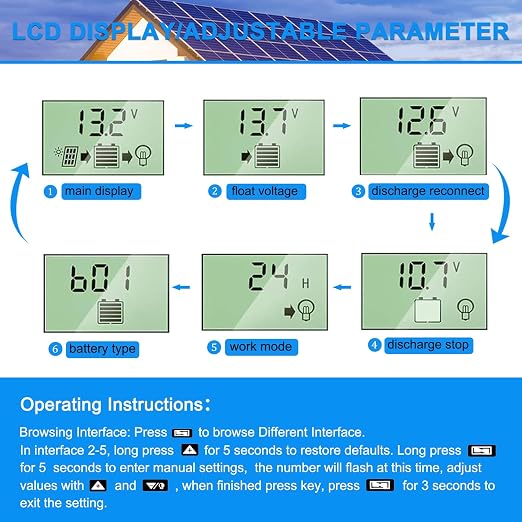

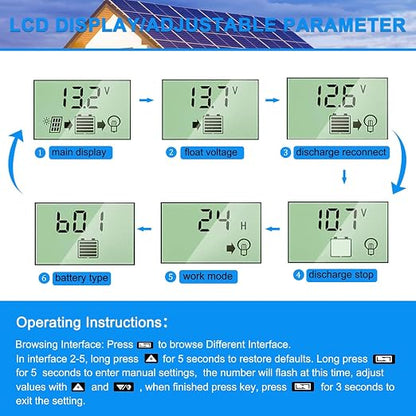

Press Menu, up/down to select battery type, interfaces, modes, and adjust parameters. The controller also features memory.

Supports most USB interface devices on the market. Charges mobile phones, tablets and computers through the dual USB output ports (5V/2.5A, maximum).

The charging management method fully adopts three-level pulse width modulation.

b1: lead-acid;

b2: lithium-ion(3 strings of 11.1V lithium batteries);

b3: lithium iron phosphate battery(4 strings 12.8V).

Default setting is b1.

When the surrounding environment is too hot or too cold, protect your controller.

The controller auto-detects 12V or 24V.(Note: On first installation, ensure the battery has sufficient voltage for correct type recognition.)

Max solar input: For 12V battery, the highest is 23V; for 24V battery, the highest is 46V.

Max.PV input Power: 390W(12V)780W(24V)
