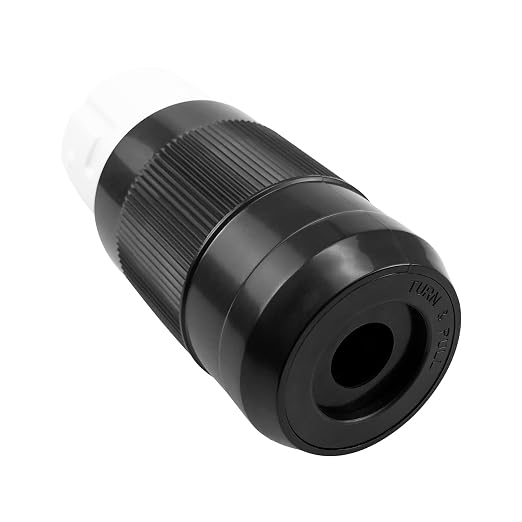

50 Amp Generator Connector Replace CS6364 NEMA SS2-50R Female Plug

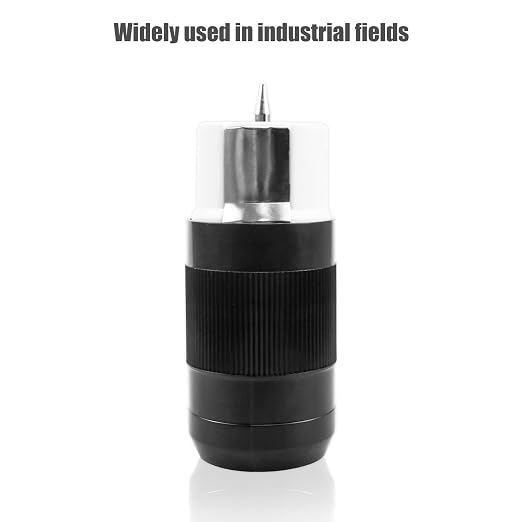

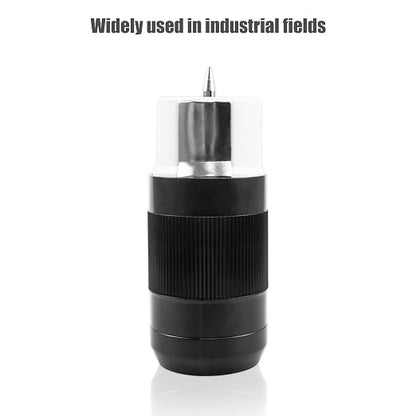

- Fitments: Female generator connector fit for generators up to 12,500 watts, CS6364 and 50 amp connector - Heavy-duty Power Cord Plug: This 50 amp connector is a heavy-duty power cord plug for generator, can be used in industrial equipment, generators, stage lighting, machine rooms, transfer switches, welding equipment, RV, trailers and etc - Easy to Install: It only takes two steps, first step is to prepare the cable, and the second step is to assemble the connector. If you have any questions during the installation, please feel free to contact us - Please Noted: Make sure to cut off the power during installation and use female generator connector in a dry place to reduce the risk of electric shock and fire - What You Will Get: 1* LL550C 50 Amp generator connector female and 24-month service, if you have any questions please contact us, we'll reply to you as quickly as possible

Product description

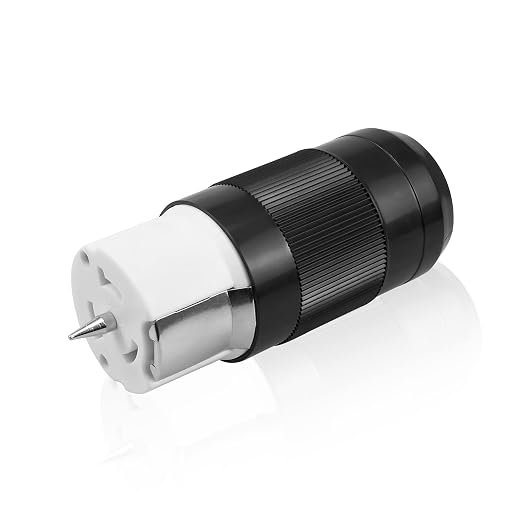

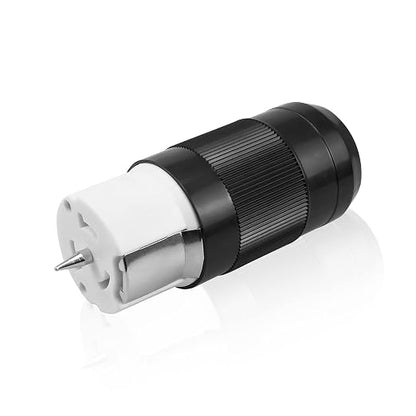

NEMA SS2-50R Generator Plug Female, 125V/250V 12500W Twist Locking Connector

Note:

1. Please install under the guidance of professionals.

2. Make sure to cut off the power during installation and use female generator connector in a dry place

Install Step 1: Prepare the cables

1. Remove the power cord end

2. Strip the outer sheath of power cord by 2.0 inches from the end (Note: not to cut the insulation layer of the inner cord)

3. Remove all colored conductor cables 0.59 inches

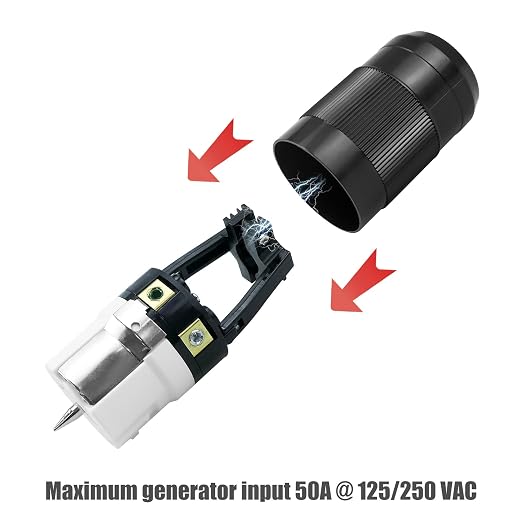

Install Step 2: Assemble the connector

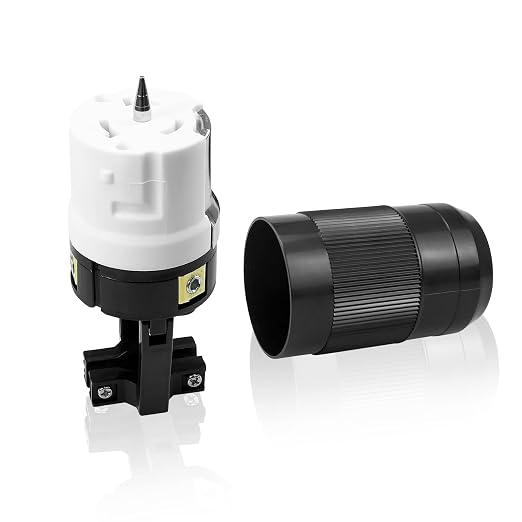

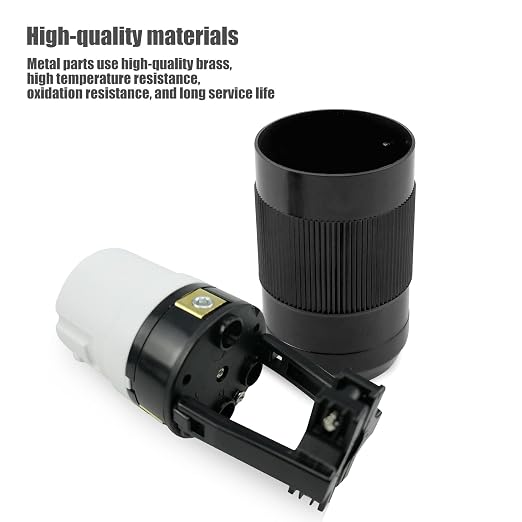

1. Loosen the three fixing screws of the connector and remove the cover of the connector

2. Connect the exposed copper on each wire to the appropriate terminal and tighten the screws:

3. Slide the rope into the strain relief device until the edge of the ribbon cable protrudes from the inner edge of the strain relief device

4. Tighten the strain relief screws
