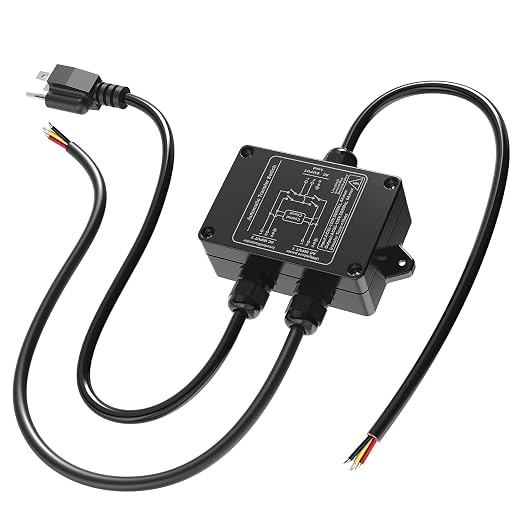

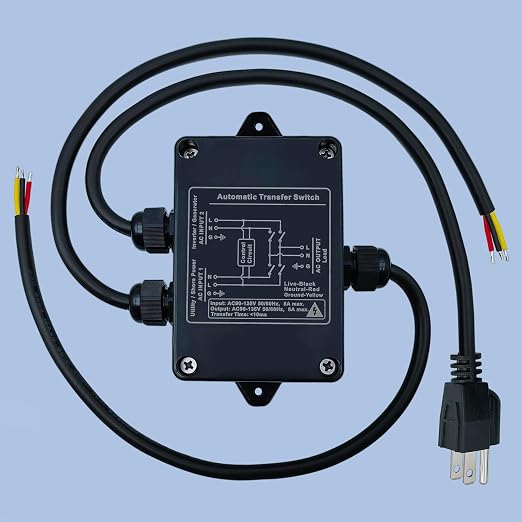

AC 120V Automatic Transfer Switch ATS Auto Transfer Switch Transfer Switchs

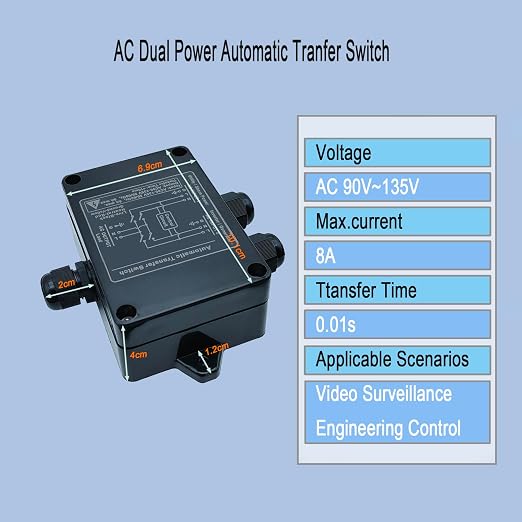

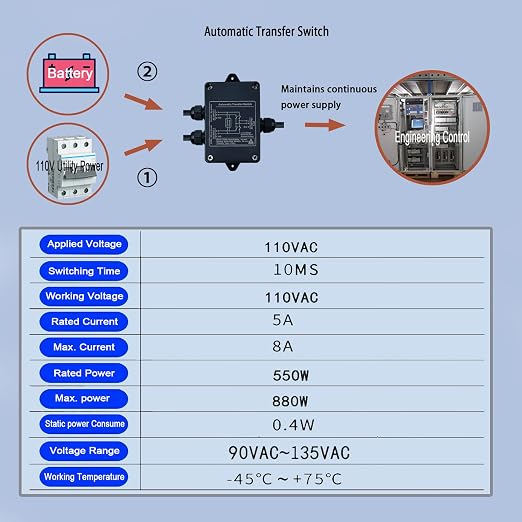

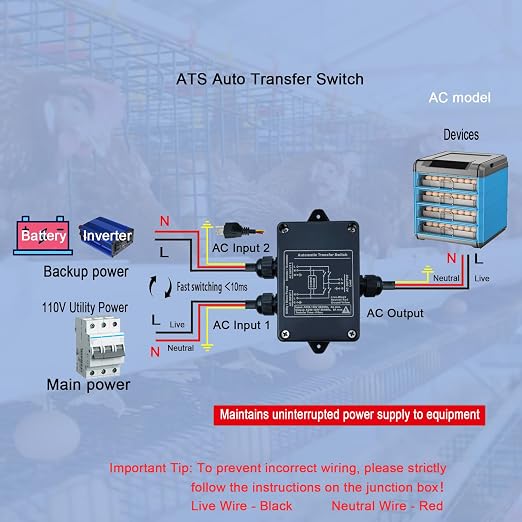

- 【Specifications】Automatic generator transfer switch input and output: AC 90?135 V, 50/60 Hz; rated current: 5 A; maximum current: 8 A; switching speed: less than 30 milliseconds (0.03 seconds). For most smart devices or computers, a switching time of 0.03 seconds will not affect their normal operation. (Please use a transformer input voltage that matches the load voltage.) - 【Safety】This transfer switch is equipped with four high-power single-pole single-throw (SPST) relays. It features a branch control design that effectively reduces the risk of arcing when high-power equipment starts or stops. The live and neutral lines switch simultaneously to prevent current imbalance. The input/output ground wires are always internally connected to ensure stable and reliable grounding. - 【Product Features】This automatic transfer switch seamlessly switches between power sources, ensuring uninterrupted power supply during outages, thereby protecting your appliances and preventing equipment downtime. - 【Operating Principle】It switches between AC INPUT 2 (Utility or Shore Power)) and AC INPUT 1 (Inverter or Generator) AC power sources. When AC INPUT 2 is powered, the load power source switches to AC INPUT 2. When AC INPUT 2 loses power, the load power source switches to AC INPUT 1. - 【Water Resistance】The outdoor-rated generator transfer switch features IP67-rated water resistance. It features a rugged PC housing paired with silicone rubber sealing components, providing waterproof and moisture-resistant properties for stable power supply in both indoor and outdoor environments. - 【Applications】This power transfer switch is suitable for security surveillance systems, lighting systems, incubators, solar lights, data centers, air conditioning systems, elevators, and other scenarios requiring a stable power supply. - 【Note】Do not overload the device, and ensure all connections are correct before use. The ATS automatic transfer switch is bonded; do not disassemble it. Disassembly will compromise its waterproof performance. If you have any other questions, please feel free to contact us at any time.
