ACEIRMC 2pcs 30A Solar Charge Controller 12V/ 24V Solar Panel Charge Controller Intelligent Regulator with 5V Dual USB Port Display Adjustable Parameter LCD Display and Timer Setting ON/Off Hours

- 30A SOLAR CHARGE CONTRALLER Compatibility with 12V and 24V system, Discharge Current: 30A; dual USB output 5V / 2.5A, Build-in industrial microcontroller for automatical management, memorizing various parameters set by the user and the data won't be lost when the battery runs out, suitable for lead-acid batteries: OPEN, AGM, GEL. - Fully 3-stage PWM regulation charging using direct charge, lifting charge, floating charge three-stage PWM regulation charging mode. Using the controller to realize efficient and fast intelligent charging, and effectively prolong the service life of the battery. - Easy to install and operate, Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration, The level of complete power-off is adjustable, which can perfectly protect the lithium battery from over-discharge, suitable for home, industrial, commercial etc. - Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices. - 30A Solar Charge Controller, Solar Panel Charger Controller 12V/24V, Multi-Function Adjustable LCD Display with Dual USB Port Timer Setting PWM Auto Parameter

Product description

Features:

Parameter

Package Included:

30A Solar Charge Controller: Build-in industrial micro controller, automatically manage the working of solar panel and battery in solar system.

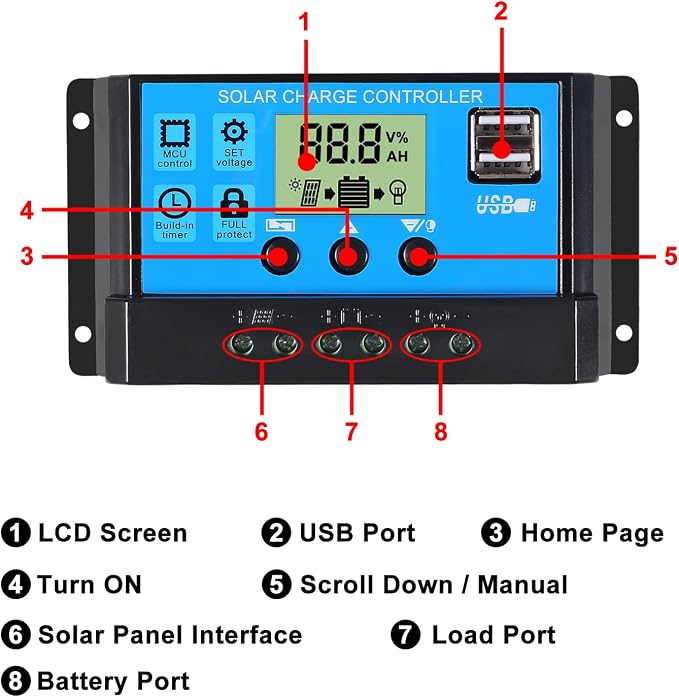

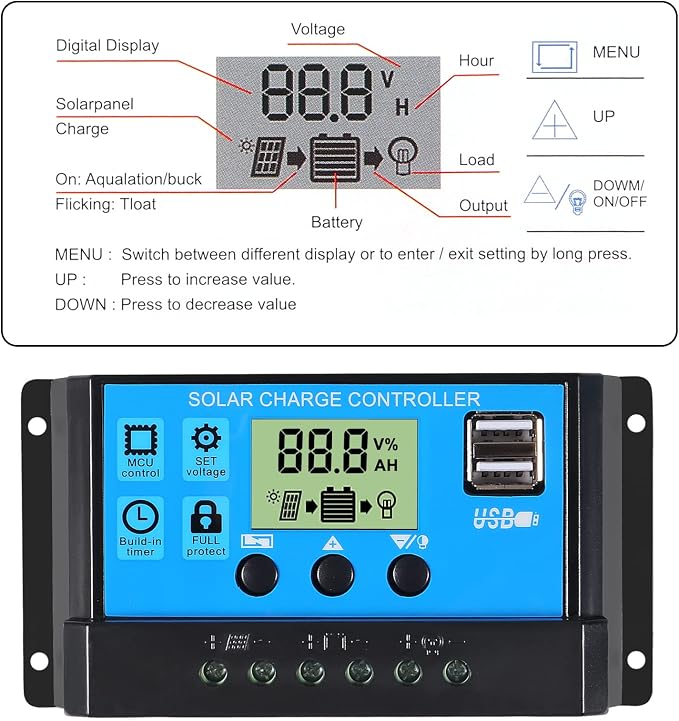

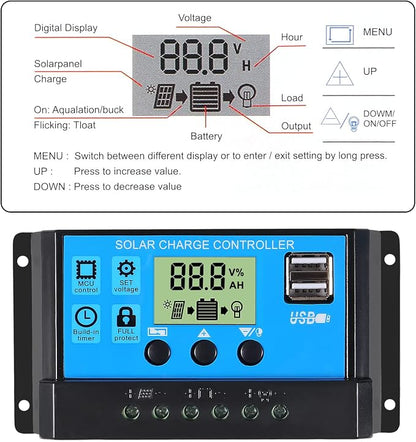

LCD Display: clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, parameters adjustable, suitable for home, industrial, commercial etc. adjustable parameter.

Multiple Protection Functions: EEEkit solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection and fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery.

Easy to Install and Operate: The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order.

Type: Solar Charge Controller

Battery Voltage: 12V / 24V

Charge Current: 30A

Working Temperature: -35¡æ

60¡æ / -90¨H - 140¨H

Self consume: 10mA

Float Charge: 13V

USB output: 5V/2.5A

Overcharge Protection: 14.4V/28.8V

Overcharge Floating charge: 13.7V/27.4V

Charge recover voltage: 12.6V/25.2V

Over-discharge Protection: 10.7V/21.4V

Max input power and voltage: 390W /12V; 780W/24V

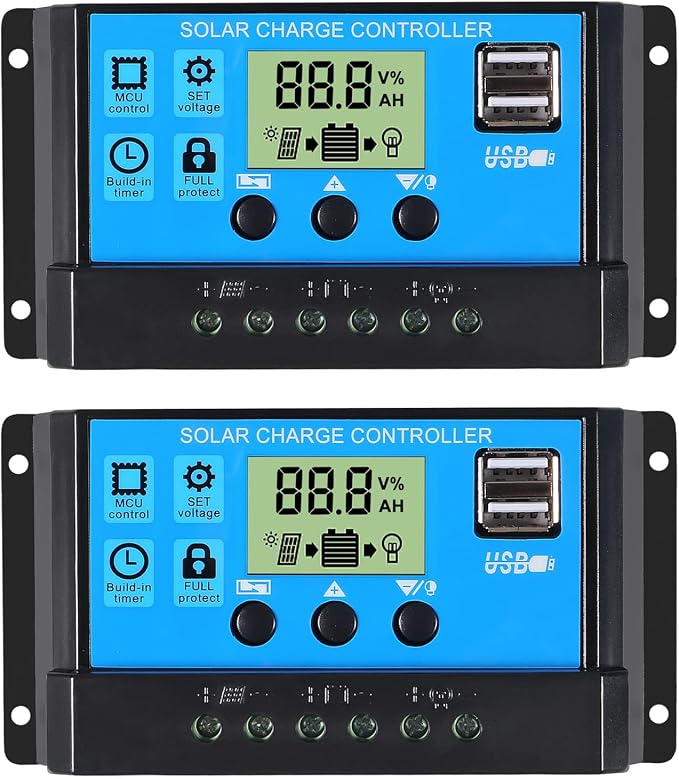

2 * 30A Solar Charge Controller
