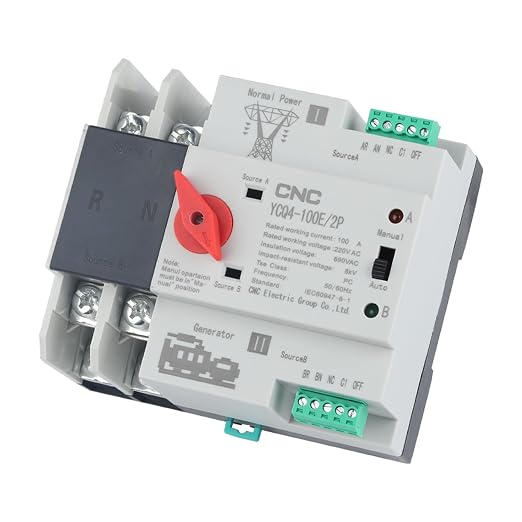

CNC 2P 100A AC110V Automatic/Manual Transfer Switch

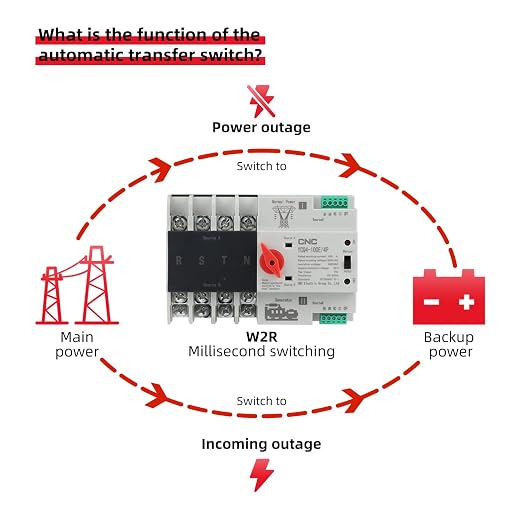

- 【Product Specifications】: Rated Current: 100A; Rated Insulation Voltage: 690V; Rated Voltage: AC 110V; Rated Frequency: 50/60Hz; Rated Short-Circuit Current: 5KA; Mechanical Life: ≥8000 cycles; Electrical Life: ≥1500 cycles. - 【Manual-Automatic Dual Mode】: The CNC dual power supply features two modes: automatic and manual. You can flexibly choose based on specific scenarios. In manual mode, use the right-hand lever to select and switch power sources. - 【High Quality and Durability】: Constructed from premium PA6 material, offering excellent heat resistance and insulation properties. Flame retardant rating: 94V-2. Compact and robust structure with mechanical life: ≥8000 cycles, electrical life: ≥1500 cycles. - 【Rapid Switching】: In automatic mode, when primary power source I fails, the CNC ATS automatically switches to backup power source II within 50 milliseconds. This ensures stable and uninterrupted power supply within the facility, minimizing issues caused by power outages. - 【Wide Application】: This ATS dual-power automatic transfer switch guarantees stable power supply. It is suitable for various equipment and scenarios requiring uninterrupted power. It is widely used in hospitals, data centers, airports, fire departments, and other facilities.

Product description
