Controller 703 Auto Start Generator Control Panel 703 for Generator Genset Alternator

- DSE 703 - The 703 Generator Controller is an Automatic Start Control Module that offers an excellent range of engine monitoring and protection features. - On-site module configuration to match user requirements - Hours counter provides accurate information for monitoring warranty periods - Multiple engine parameters are monitored simultaneously - Controller 703 has been designed to monitor over speed, under speed, high engine temperature, low oil pressure, battery charge fail and fail to start.

Product description

AUTO START CONTROL MODULES 703

FEATURES of Generator Controller 703

BENEFITS of Generator Controller 703

CONFIGURATION

The 703 Generator Controller is an Automatic Start Control Module that offers an range of engine monitoring and protection features.

The module has been designed to monitor over speed, under speed, high engine temperature, low oil pressure, battery charge fail and fail to start.

The 703 Generator Controller also has two configurable auxiliary inputs and a configurable engine pre-heat timer. When the module detects a fault condition it automatically shuts down the engine, indicating the exact fault via LED.

? Manual start ? Automatic start

? Engine pre-heat ? Engine monitoring and protection features

? Protected Solid State outputs ? Front panel mounting

? Front panel programming ? Tamper proof engine hours counter

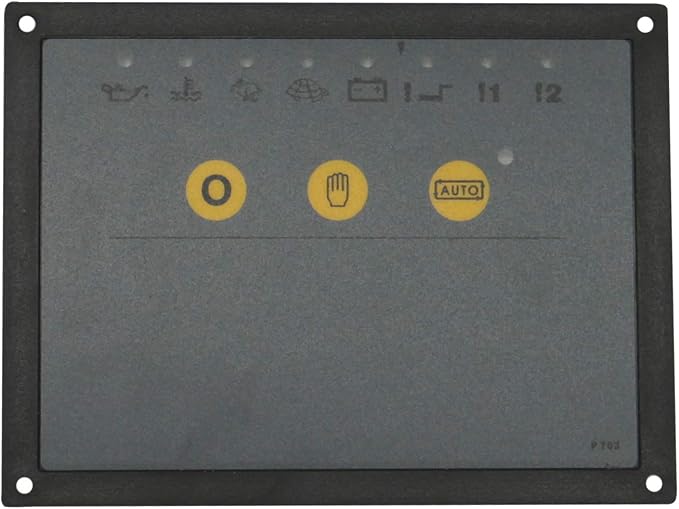

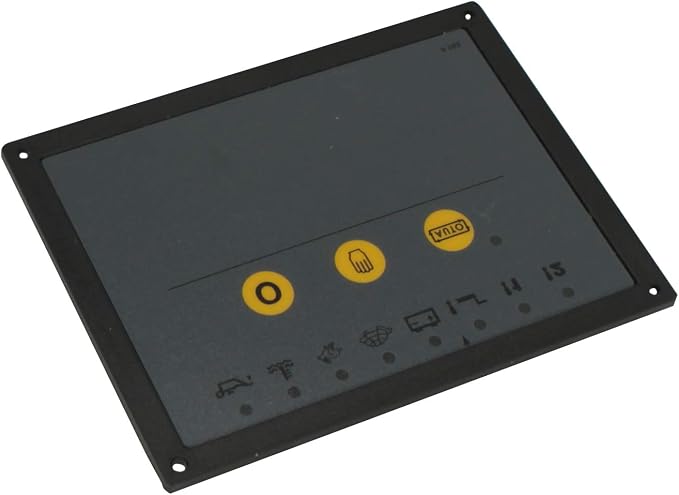

? Remote start ? LED indicators

? Configurable inputs ? Configurable timers

? Configurable outputs ? Engine exercise mode

? On-site module configuration to match user requirements

? Hours counter provides accurate information for monitoring

? Multiple engine parameters are monitored simultaneously

The modules can be configured to match user’s individual parameter settings. Configuration mode is accessed via the switch at the rear of the module. Once in configuration mode the AUTO-LED

flashes rapidly.
