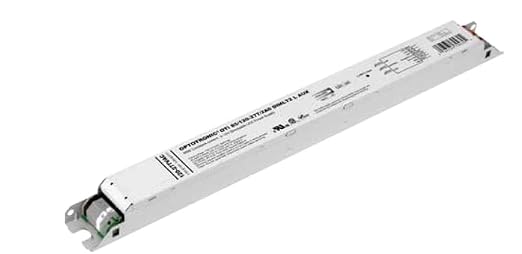

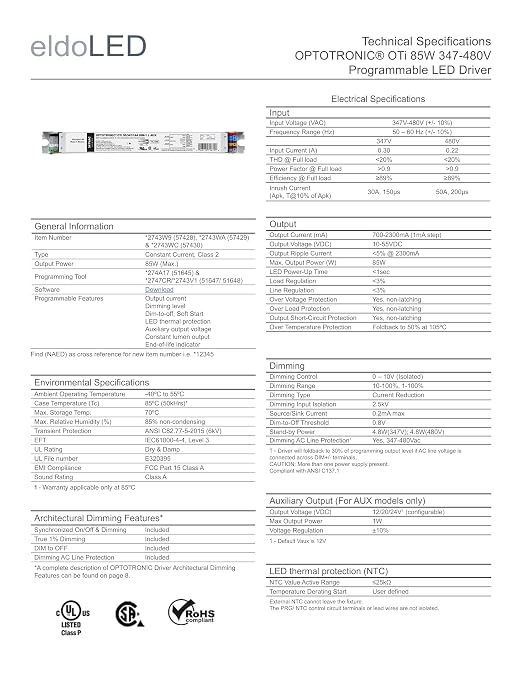

eldoLED | 2743W9 OPTOTRONIC OTi 85W 347-480V Programmable LED Driver | Replacement for OSRAM 57428 | Oti85/347-480/2A3 DIM-1L HB

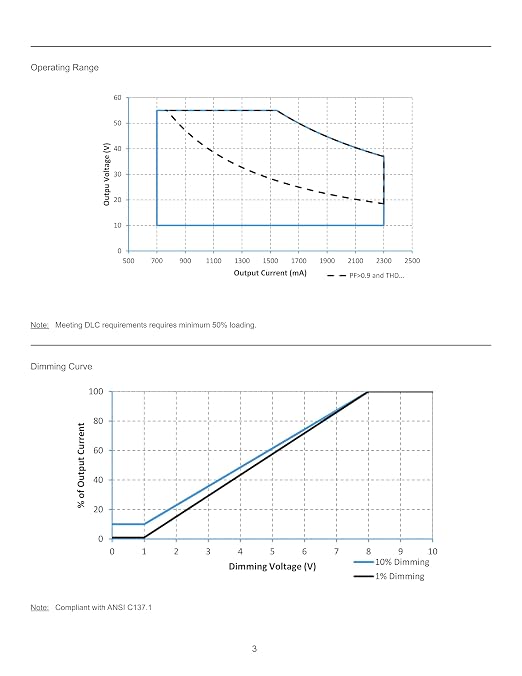

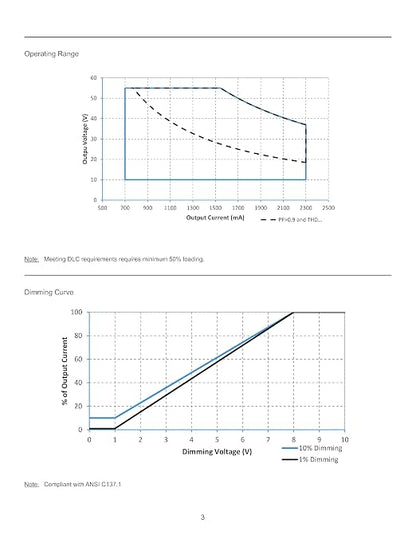

- Synchronize ON/OFF Timing and Dimming Controls: This feature meets efficacy requirements and ensures consistent dimming levels across multiple luminaires and individual luminaires that require multiple drivers. - True 1% Dimming: Architectural LED drivers support 1% dimming across the entire driver programmable output current range for True 1% dimming. For example, if a driver is programmed to 300mA, then at 1% dimming, output current would be 3mA. - DIM-to-OFF: DIM-to-OFF enables luminaires to smoothly transition from DIM-to-OFF and save energy without needing additional control equipment to turn off the fixture. Select architectural-grade LED drivers offer DIM-to-OFF and have a programmable AUX power output option to power and extend DIM-to-OFF capability to fixture-integrated sensors and controls. - Constant lumen Maintenance: The Constant Lumen Maintenance feature of the OTi 85W helps to maintain the required lumen output of the fixture at a constant level throughout its lifetime. In general, LED’s lumen output will depreciate over time and in order to maintain sufficient light level towards the end of lifetime, the LEDs are driven at high current initially and will result in more energy consumption. - End-of-Life Indicator: The End-of-Life indicator helps the end user to receive a signal from the fixture indicating that it has reached its programmed life-time. After the LED driver reaches the programmed life-time, whenever it is turned ON, it stays at ‘Dim’ level (10%) for 10 minutes and reaches its appropriate level.
