MPPT Solar Charge Controller 5V-24V Power Management Module

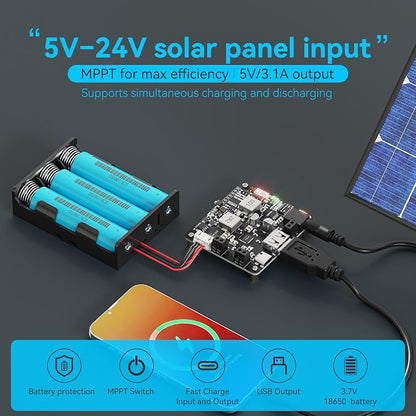

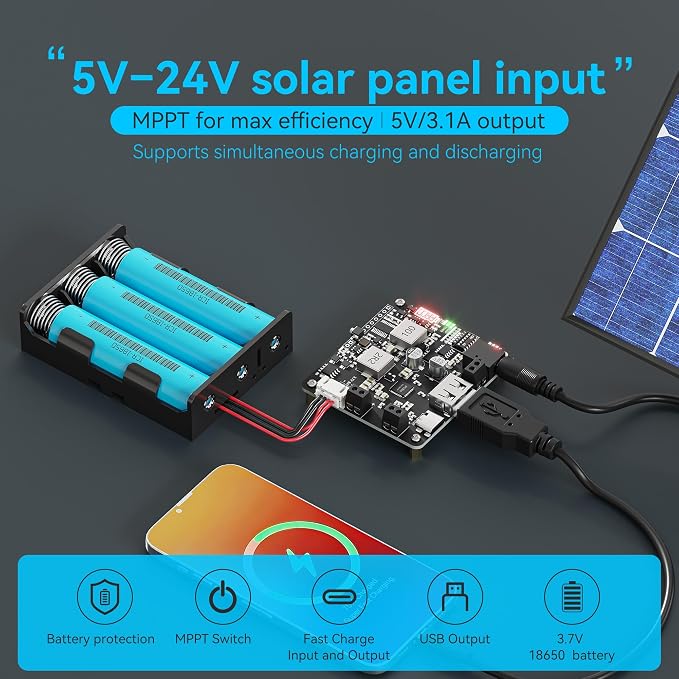

- MPPT Algorithm Technology: Built-in MPPT algorithm helps maximize solar energy harvesting efficiency under different lighting conditions - Wide Solar Panel Compatibility: Supports 5V to 24V solar panel input, suitable for various small solar energy systems and DIY applications - Dual Charging Ports: Equipped with USB and Type-C output ports for powering and charging multiple 5V devices - Lithium Battery Management: Designed for 3.7V lithium battery charging and power management for small solar storage systems - Compact Design: Compact and easy-to-use design suitable for DIY solar projects, outdoor devices, and low-power energy systems - Intelligent Power Management: Features intelligent power management capabilities to optimize charging performance and protect connected devices from overcharging and voltage fluctuations - Versatile Applications: Suitable for outdoor monitoring devices, portable solar systems, camping equipment, and various low-power renewable energy applications

Product description

Product Overview

Features

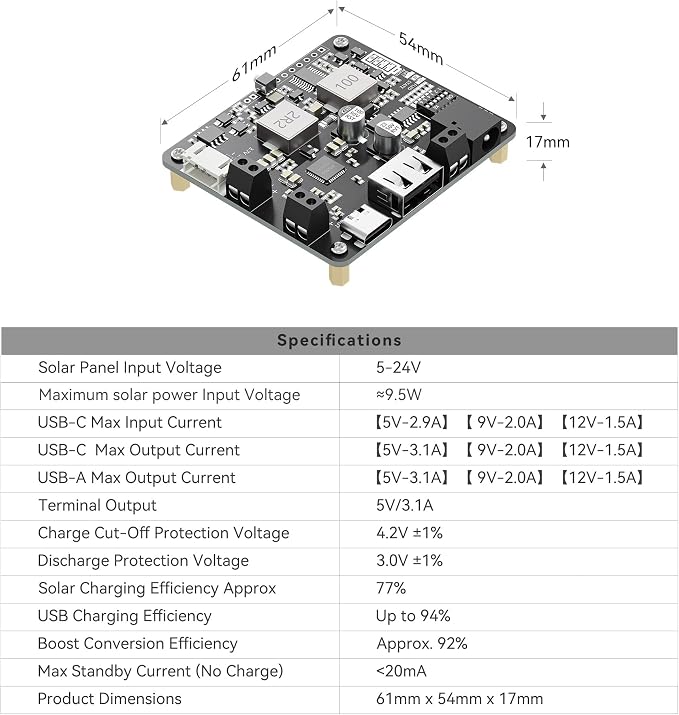

Specifications

5V-24V Solar Power Management Module with MPPT, Type-C Power adapter, 5V/3.1A Regulated output, USB Charging Module

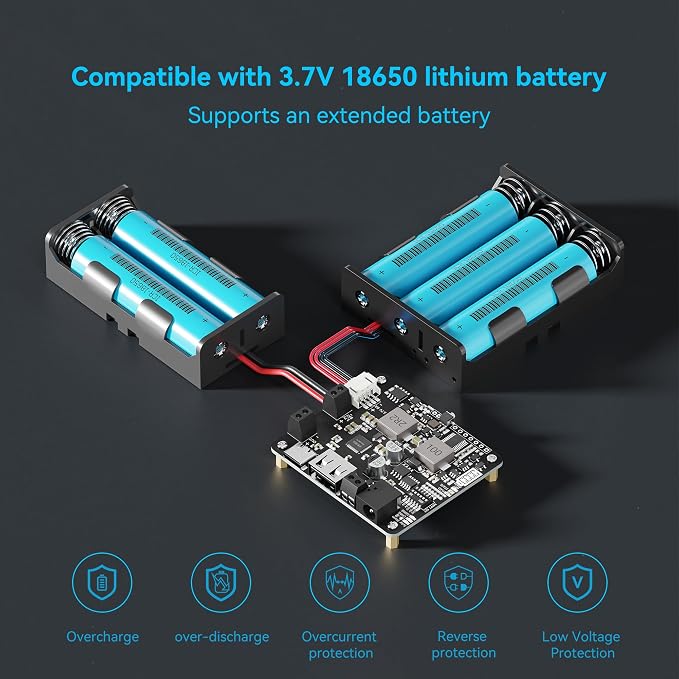

The Solar Energy Manager A is a solar power management module supporting charging of a 3.7V 18650 lithium battery via solar panels and USB. It offers a regulated 5V/3.1A output (with the Type-C port supporting multiple protocols such as PD/QC/FCP/PE/SFCP). The module includes MPPT (Maximum Power Point Tracking) and battery charge/discharge protection, which dynamically adjusts charging power based on input voltage, maximizing solar energy utilization. The charge/discharge protection circuit monitors battery voltage to prevent overcharging and over-discharging, ensuring battery safety and longevity. Its stability and efficient charge management make it suitable for applications such as solar power generation, low-power IoT devices, environmental monitoring, and portable power banks.

When the module's USBA connector and 3.5mm output terminals are not connected to any load, the board is in a low-power output state, and the output voltage at these ports is approximately 2.5V. When a load is connected, it will automatically output 5V. After the load is removed, it will still maintain a 5V output voltage unless the board is recharged via USBC or the activation button is pressed once to put the board back into sleep mode.

（1）DC-044 Solar Charging Jack: Connects solar panels via power jack. （2）3.5mm Solar Charging Terminal: Connects solar panels via terminal.

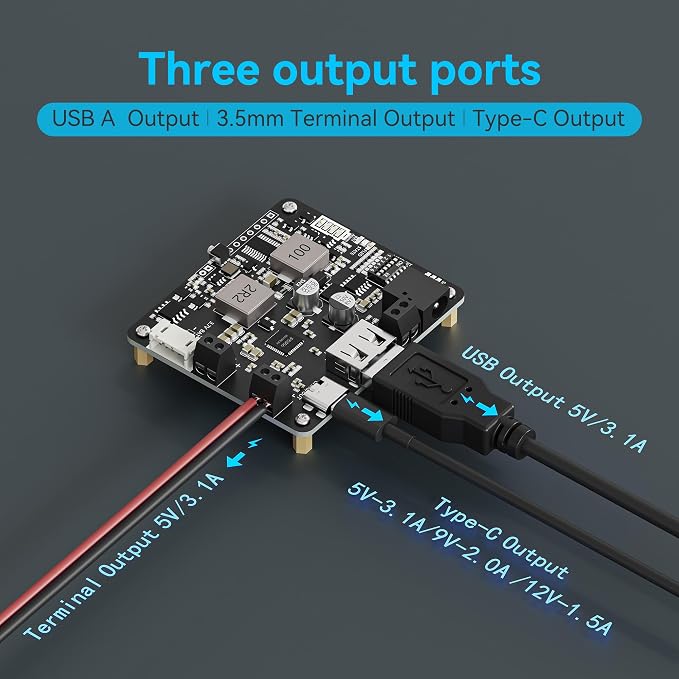

（3）USB A Output: Provides up to 5V/3.1A power output.

（4）USB C Charging/Discharging Connector: The battery can be charged or discharged via a TYPE-C Figure 4-1 Solar Energy Manager A Resource Overview data cable, supporting multiple protocols such as PD/QC/FCP/PE/SFCP; （5）3.5mm Terminal Output: Outputs up to 5V/3.1A power.

（6）3.5mm Battery Input Terminal: Connects to 3.7V rechargeable lithium battery.

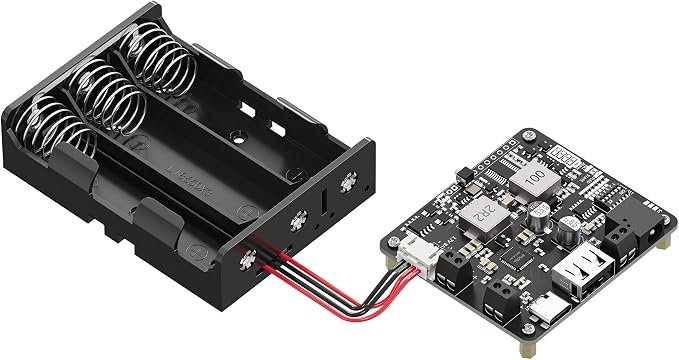

（7）PH2.0-4P Battery Input Terminal: Connects to 3.7V rechargeable lithium battery.

（8）Output Activation Button: Activates output after low-voltage lock state.

（9）Battery Charge/Discharge Status and Voltage Pins (header not soldered).

（10）Battery voltage indicator. （11）LED Indicators: Fast charge (FLED), IP5356M chip status (STATE), Battery reverse polarity (BAT Alarm).

（12）MPPT Voltage Setting Switch: Adjusts MPPT voltage based on solar panel input to optimize charging efficiency. The MPPT setting voltage should be less than or equal to the input voltage

（13）Solar Charging Indicators: Reverse polarity (Solar Alarm), charging (CHRG), and full charge (DONE).
