MPPT Solar Charge Controller High Efficiency 12V 3A MPPT Panel Charger Module with Terminal for Car Battery Charging Solar UPS Industrial Equipment

- Designed with MPPT technology, this solar charge controller boosts energy harvest from your solar panels for and more efficient 12V battery charging, whether you're powering an RV, boat, or off-grid setup. - Built for precise 12V charging, it works with a wide range of solar panel configurations and supports battery capacities from 1 to 1000 AH, making it a versatile choice for your deep cycle or car battery. - Rugged and reliable, this controller operates in temperatures from -40°F to 185°F and handles up to 3 amps of current, so it keeps working even in extreme weather or tight engine compartments. - Your battery and charging system stay safe with built-in protections against overcurrent and overvoltage. A clear status indicator lets you know the charger is working as it should. - Compact and easy to install, this MPPT controller is ideal for keeping your 12V battery topped off whether youthe road, at the dock, or managing backup power for your equipment.

Product description

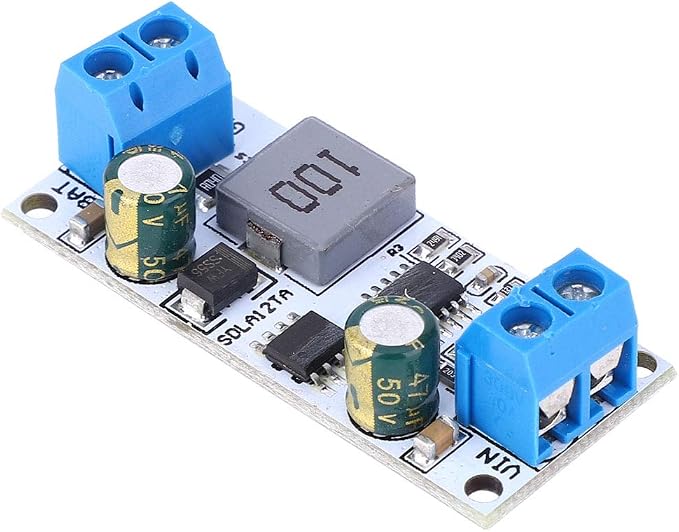

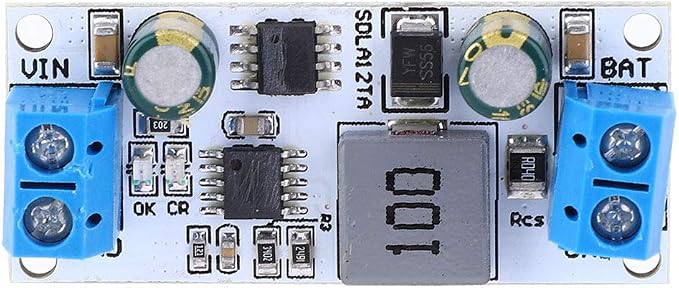

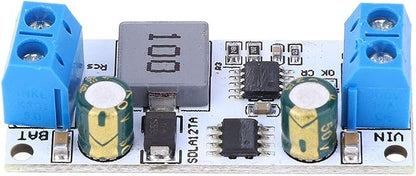

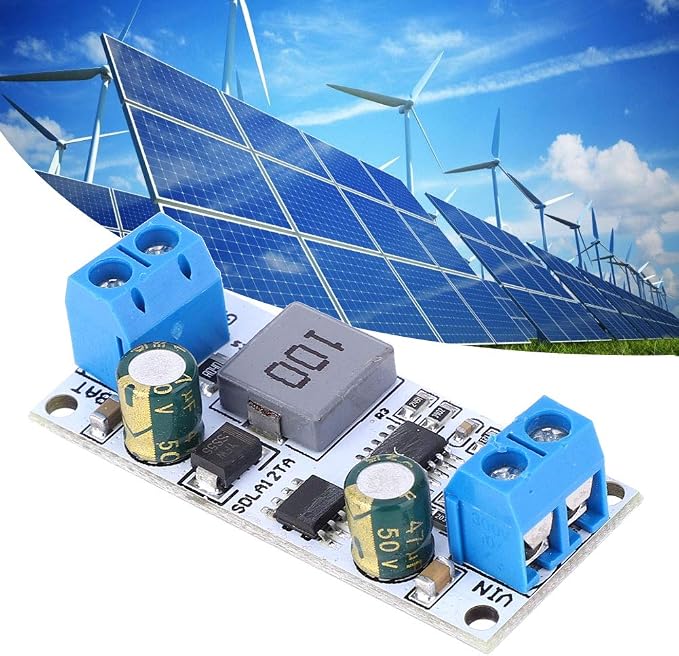

Fafeicy SDLA12TA/SDLA12TB MPPT Controller Charging Module for 12V 1-1000AH Battery

Photovoltaic battery maximum power point tracking (MPPT).

Overcurrent , battery overvoltage , charger status indication.

Suitable for 1-1000AH 12V - Battery charger.

Specification:

Item Type: MPPT Controller Charging Module

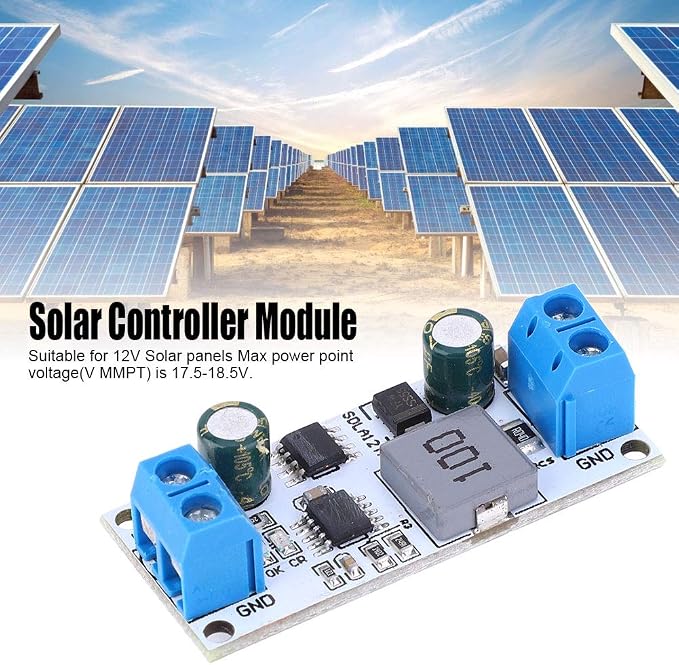

supply voltage: 12V panels 18-28VDC supply

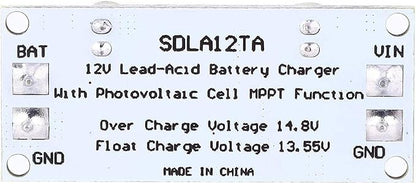

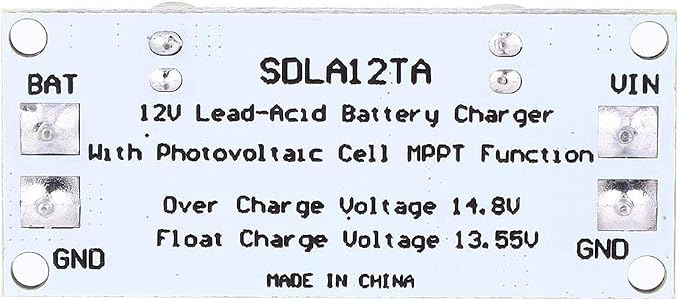

Over Voltage: 14.8V

Voltage: 13.55V

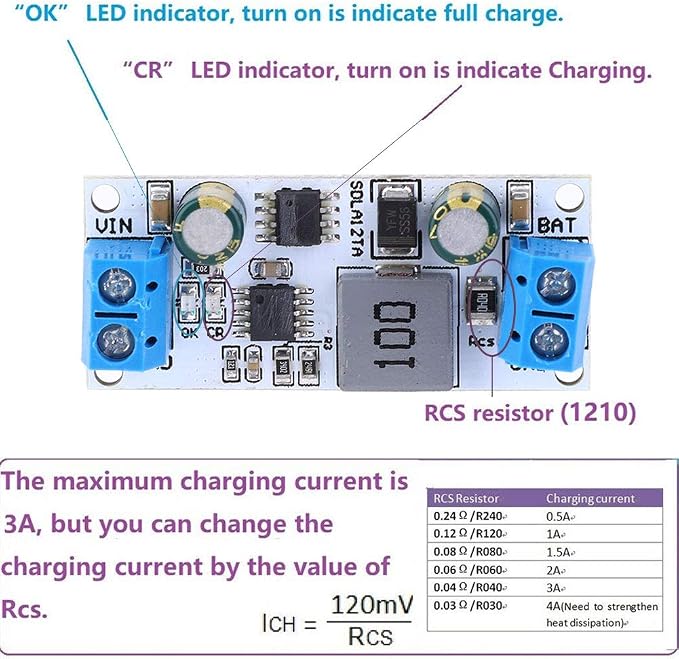

Maximum Current: 3A(default）

Quiescent Current: About 1.8mA

High PWM Switching Frequency: 300KHz

Fixed Over- Voltage

Overcurrent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

Charger Status Indication

Battery Overvoltage

Operating Ambient Temperature －40℃ to ＋85℃

Optional Type: With Terminal, Without Terminal

Package List:

1 x MPPT Controller Charging Module
