Newpowa 150W(Watt) 10BB Solar Panel Monocrystalline 12V High Efficiency PV Module 150W for RV Marine Boat Trailer Camper Rooftop Off Grid System

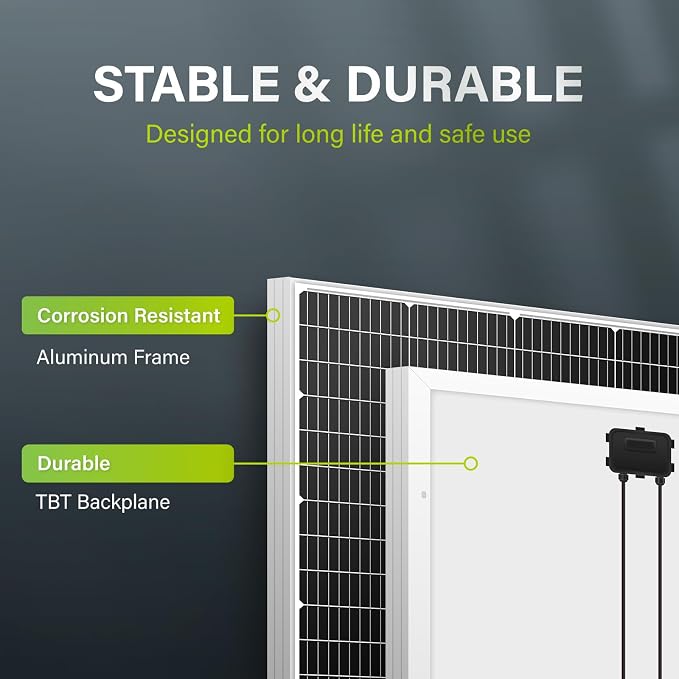

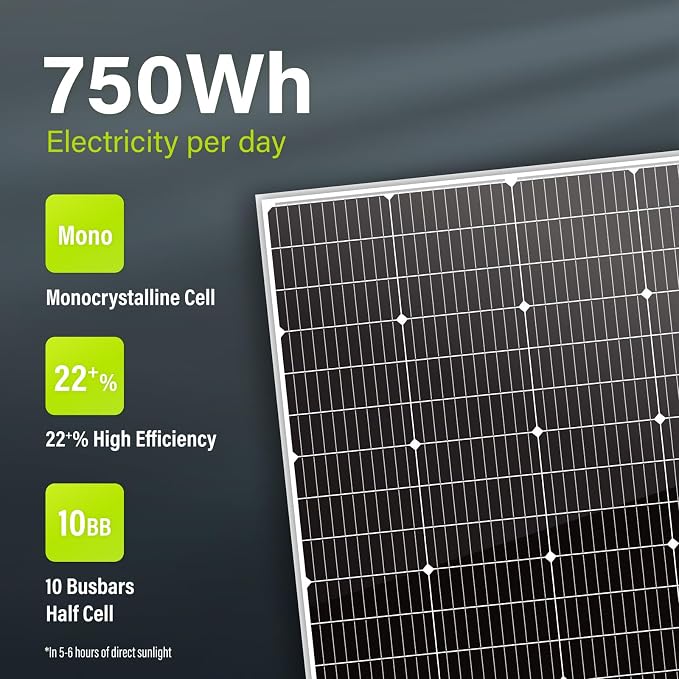

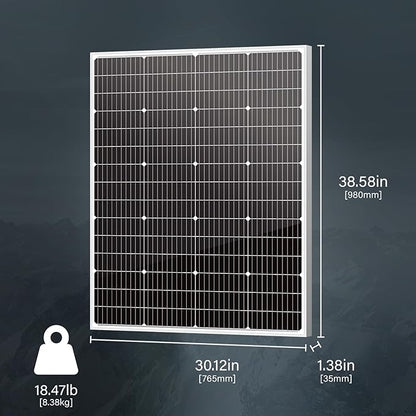

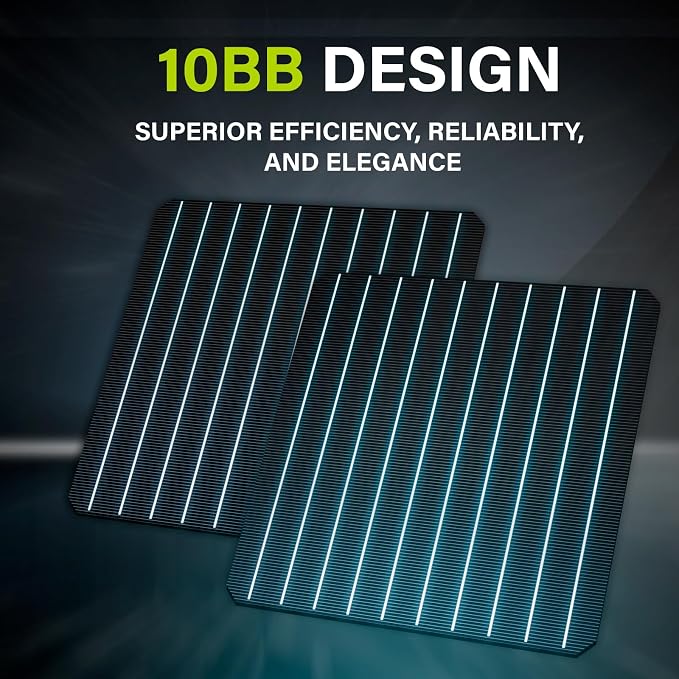

- 【New Design】Using 10 busbars technology which has higher cell efficiency. Compared with 5BB solar panel cells, the 10BB 182mm solar cell has a better light converting rate and longer lifespan. - 【Dimension】38.58 x 30.12 x 1.38 in. High winds (2400PA) and snow loads (5400PA). - 【Maximum power (Pmax)】150W, Voltage at Pmax (Vmp):17.40V, Current at Pmax (Imp): 8.63A. - 【Easy Installation】Heavy-duty anodized frame with pre-drilled holes for mounting. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft solar connector cable. - 【After-sales Service】 With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, 25 years of power output is greater than 80%

Product description

Does a Solar Panel produce full power?

How to test a solar panel?

How does temperature affect solar panel efficiency?

How to install our solar panels using different brackets?

Can I connect different solar panels together?

Solar Panel

Does a Solar Panel produce full power?

In most cases, it is normal for a solar panel to not be able to provide its full nominal power.

Factors affecting the performance of solar panels: Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading, Etc...

How to test a solar panel?

The ideal conditions: Noon, clear sky, 25° tilt to the sun, battery is less than 40% SOCC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage.

How does temperature affect solar panel efficiency?

Solar Panel Efficiency & Temperature: -Test Temp: 77°F/25°C; -Peak Efficiency Range: 59°F/15°C to 95°F/35°C; -?Temp Impact: Efficiency decreases with temperature rise. ?-Example: Temp coefficient of -0.5% → Power reduces by 0.5% per 50°F/10°C rise.

How to install our solar panels using different brackets?

There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.

Can I connect different solar panels together?

Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.
