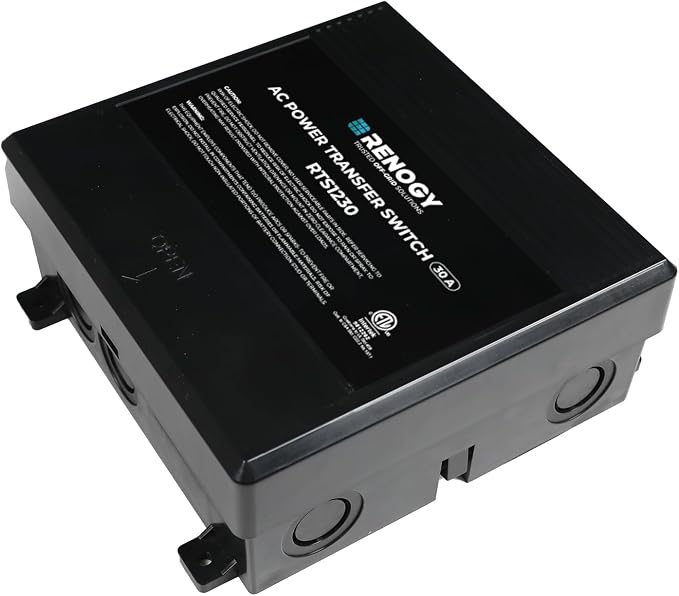

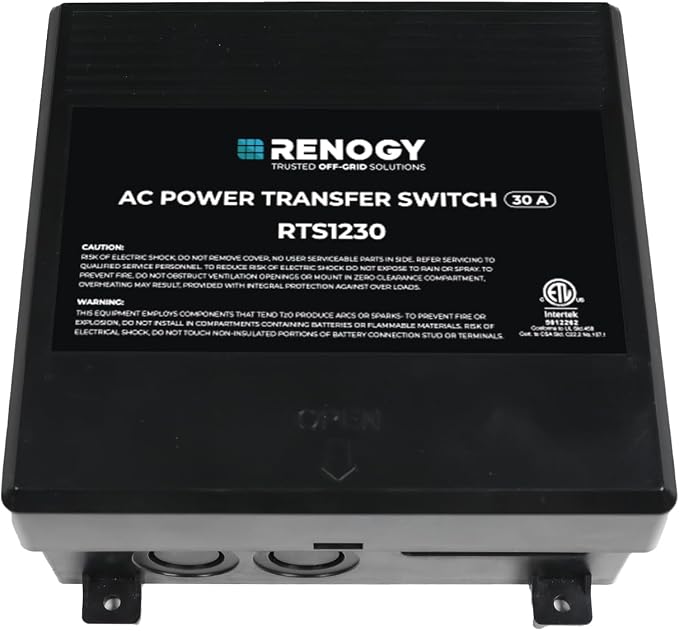

Renogy 30Amp Transfer Switch for Pure Sine Wave Inverter

- 【Seamless Power Switching for Uninterrupted Supply】Automatically switches to backup power when the main source fails, and back again once it's restored?no manual action needed, ensuring continuous power flow. Widely used in shore power, solar inverters, and generators. - 【Versatile Compatibility Across Applications】Fully compatible with Renogy 1000W, 2000W, 3000W pure sine wave inverters and other brands' battery inverters. Ideal for RVs, camping vans, off-grid systems, and backup home power setups. - 【Built Tough for Harsh Environments】Constructed with high-quality, heat-resistant, and corrosion-proof ABS materials, built to withstand challenging conditions and deliver long-lasting performance. - 【Easy Installation】 Mounts securely to walls or floors using built-in screw holes. Designed for dry, well-ventilated locations. For outdoor use, installation in a waterproof enclosure is required to protect against moisture. - 【Built-In Time Delay】 Features a 20?30 second delay when switching to generator power, helping to stabilize voltage during startup and protect connected equipment from power surges or frequent switching.

From the manufacturer

Specification

Q1: How to Choose the Right 30A Transfer Switch?

A1: Make sure to select a transfer switch that is appropriate for the current load of your system. Check the maximum current requirements of the device you will be connecting and ensure that the transfer switch is rated at 30A. Also, verify that the input voltage range supported by the switch is compatible with your system.

Q2: Do You Need a Professional Electrician to Purchase and Install It?

A2: Yes. The 30A transfer switch involves electrical connections and must be installed in accordance with local electrical safety codes and standards. It is recommended that qualified electricians install the device to ensure safety and compliance. Before installation, check the power and current ratings of all connected devices to avoid exceeding the maximum load.

Q3: How to Install the 30A Transfer Switch Correctly?

A3: Disconnect the power supply during installation and follow the wiring diagram in the product manual. Ensure that the input and output ports are properly connected and that the cables are securely fastened. For reserved wiring holes, use cables or conduits of appropriate size. During installation, electricians should consider the switch’s placement to avoid exposure to humidity or high-temperature environments.

Note: Relay and ground bar cables are supported in the 6?14 AWG range.

Q4: What Can I Do if the Device Fails?

A4: Immediately turn off the transfer switch and disconnect the power supply. If sparks or smoke are observed, it may be due to poor wiring, overload, or internal failure. Do not attempt to repair it yourself?be sure to contact a professional electrician for inspection and repair.
