Small Wind Turbine Generator Micro DC Motor Fan Blade Model LED Light Kit

- NOTE before Purchase: This wind turbine needs to be driven by a fan or blower at a right angle instead of natural wind. Natural wind needs to be relatively large to generate electricity. The greater the wind energy, the greater the power generated by the generator. If the wind is small, the leaves will rotate slowly, although it will generate electricity, but the output voltage and current will be small, and the light bulb will not turn on.(The natural wind is too small to light up the led.) - Large Fan Blades: Nubuck Process, Fan blade diameter 17.5cm/6.88", a leaf has 11 blades, the wind is very strong, whether it is made of fan blades, the output wind, or electricity used in wind power conversion effect is very good. Note that the target audience for this product is teenagers or adults, this product is not-a-toy, please keep away from children. - Power Generation Motor: DC 280 motor. 0~36V all can use. 3800rpm@12V, 7600rpm@24V. used with fan blades, the output current, voltage is also high. Under the fan, the maximum output of about 5.5v 80ma current. Actual measurement. If it is blowing in the hair dryer, current and voltage estimates will be higher. (The sunken circle mark on the tail is the positive pole of the motor.) - 5V 5W LED Light: The led light has a wiring clip, the red clip is the positive pole, and the black clip is the negative pole. The operating voltage is between 2.4v and 6v. The light can be on when 2.4V. Fully brightened at 5v. The power of this led light is 5 watts. So the brightness is very good, much brighter than the average 3w. The quality is very good. - Widely Application: Good choice for teaching physical DC wind power generation principle, It also a great teaching tool to develop youth hands-on ability and develop interests. Not only for testing and teaching purposes, but also for many practical DIY purposes. Such as bicycle wind power lighting. The delivery kit needs to assemble by yourself, just enjoy the DIY fun. In actual measurement: Wind motor generator can simultaneously power 8pcs 5V 5W LED lamps.

Product description

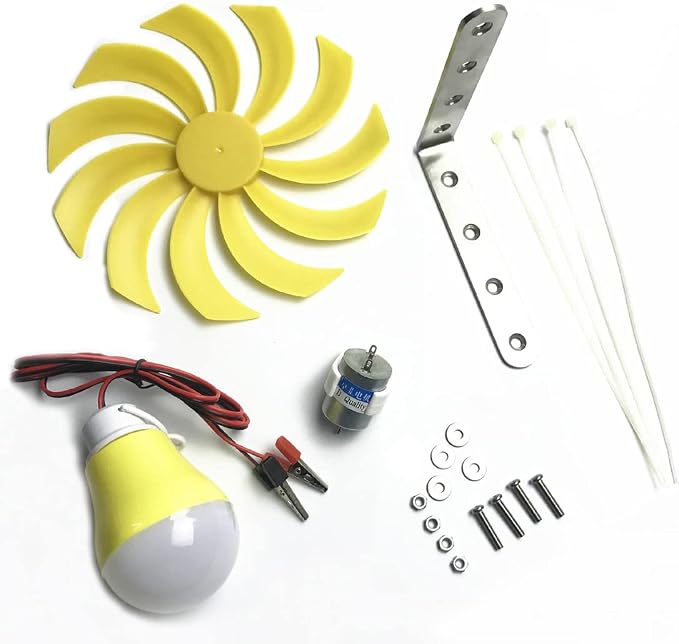

Package Includes:

Large fan blades:

Power generation motor:

5V 5W LED light:

Other Parts Specification:

Please Note before Purchase: In order to improve the display effect, the turbine needs to be driven by a fan or blower at a right angle instead of natural wind. Natural wind needs to be relatively large to generate electricity. The greater the wind energy, the greater the power generated by the generator. If the wind is small, the leaves will rotate slowly, although it will generate electricity, but the output voltage and current will be small, and the light bulb will not turn on.(The natural wind is too small to light up the led, which has nothing to do with product quality.)

1 x Fan Blades

1 x Motor with one Fixing Bracket

1 x 5W LED with wiring clip

1 x Fixed Angle Bracket

4 x Ties

12 x Screw set

Scrub the injection molding process, the leaf diameter about 6.88", a leaf has 11 blades, the wind is very strong, whether it is made of fan blades, the output wind, or electricity used in wind power conversion effect is very good.

280 DC motor. With fan blades, the output current, voltage is also high. Under the fan, the maximum output of about 5.5v 80ma current. Actual measurement. If it is blowing in the hair dryer, current and voltage estimates will be higher.

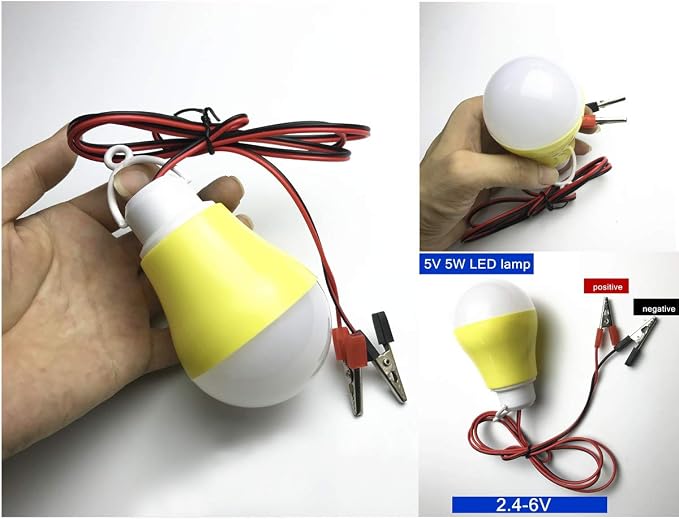

The led light has a wiring clip, the red clip is the positive pole, and the black clip is the negative pole. The operating voltage is between 2.4v and 6v. The light can be on when 2.4v. Fully brightened at 5v. The power of this led light is 5 watts. So the brightness is very good, much brighter than the average 3w. The quality is very good.

Wind motor generator can simultaneously power 8pcs 5V 5W LED lamps.

Fixed angle bracket 4.92"x4.92"x0.07", mounting hole is about 0.17", Screw nut and screw flat washer are M4, screw length 0.78"; Ties is 0.18"W * 5.9"L.
