Solar T-Branch Connectors 3 to 1 Solar Panel Parallel Adapter1Pair

- Solar Y branch connectors: 1 male to 3 female(M/3F) and 1 female to 3 male(F/3M), it could be used for connecting two solar panels in parallel. It is compatible with solar connectors in 10AWG to 18AWG. - Safe & Waterproof: An IP67 waterproof ring on the Y branch connectors is perfect that seal out water and dust to prevent it from corrosion, make it great to withstand extreme weather and high humidity, safe and durable. - High Security: Solar panel cable connector is certified by TUV, made of corrosion-resistant and UV-resistant PPO material, designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions. Quality material makes sure that it can keep working stably from -40℉ to 190℉. - Built-in Lock Solar Connector :The built-in lock on the solar extension cables are designed to protect water and dust from entering the cables and to prevent cables from falling out due to outdoor environments. - What You Get: Package includes: 1 x 1 to 3 Solar Branch Connectors.

Product description

Solar Branch Connector:

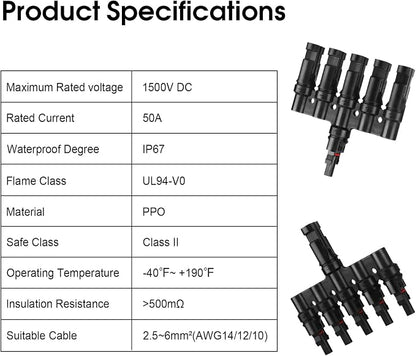

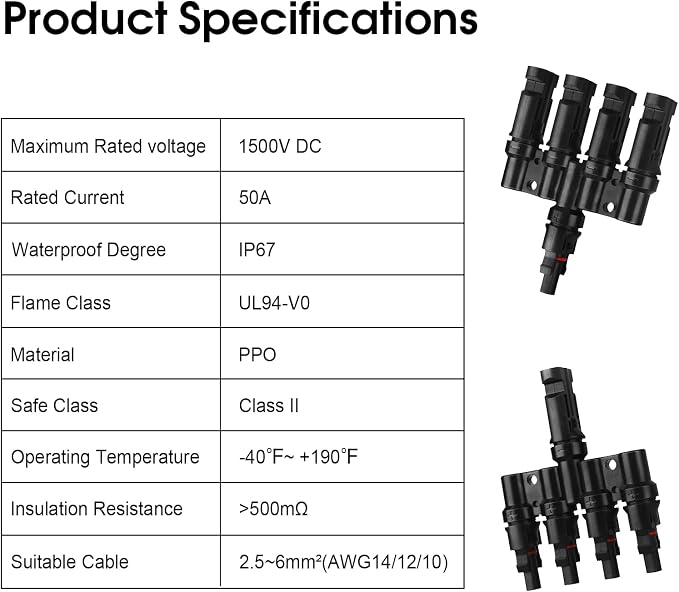

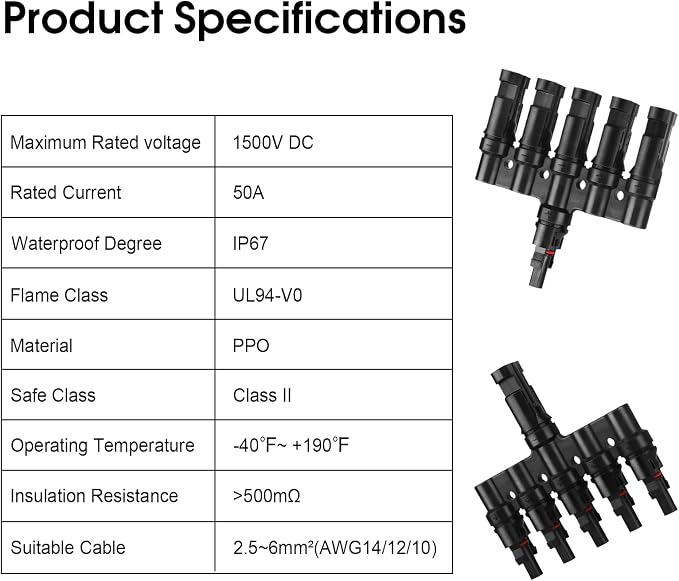

Specification:

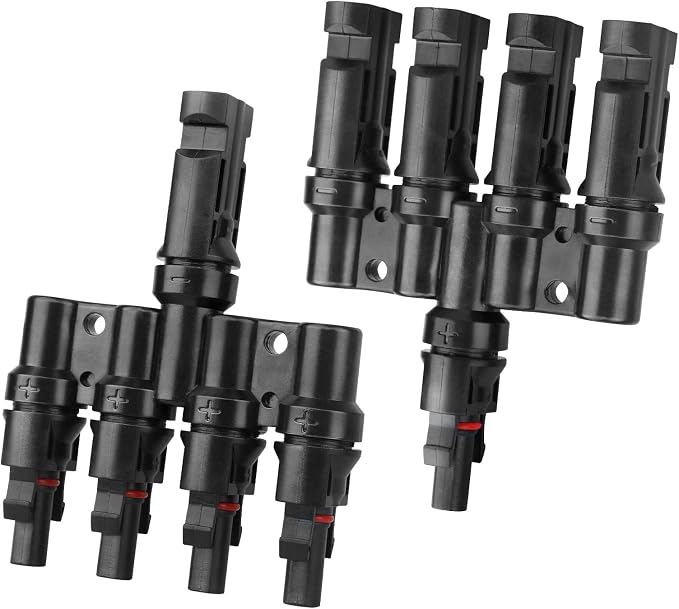

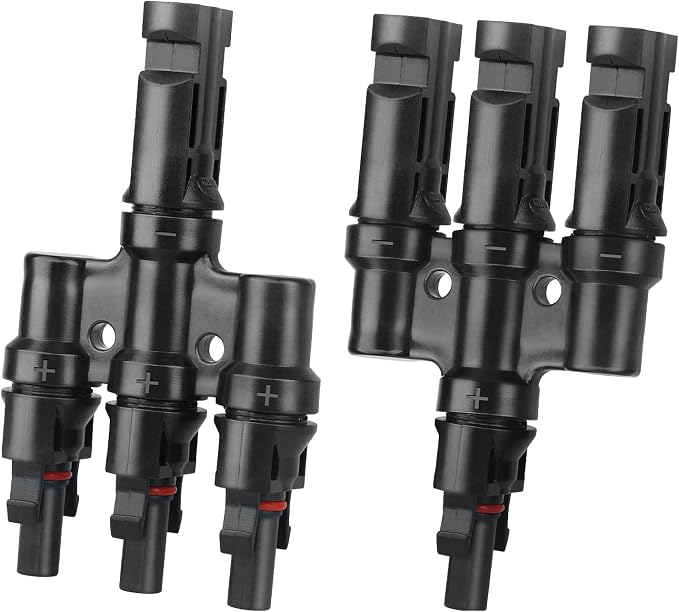

1. 1 male to 3 female (M/FFF) and 1 female to 3 male (F/MMM), compatible with solar connectors from 10AWG to 18AWG. High current and high voltage load capacity and Lower contact resistance.

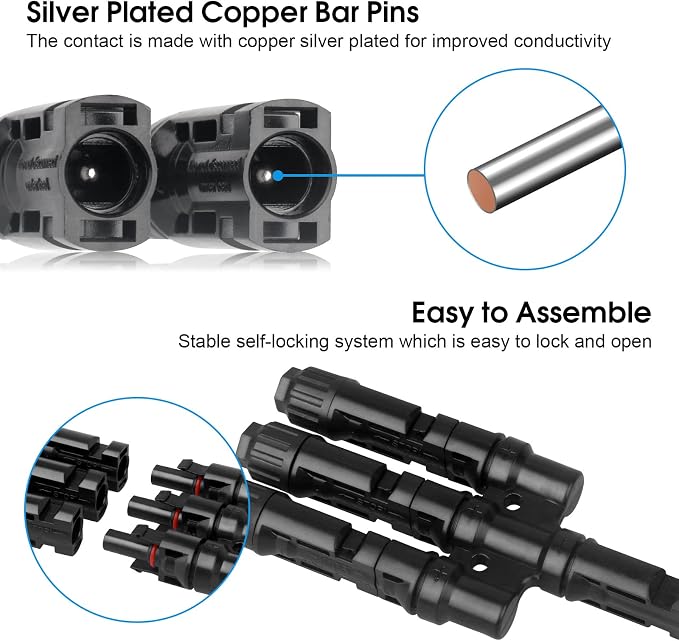

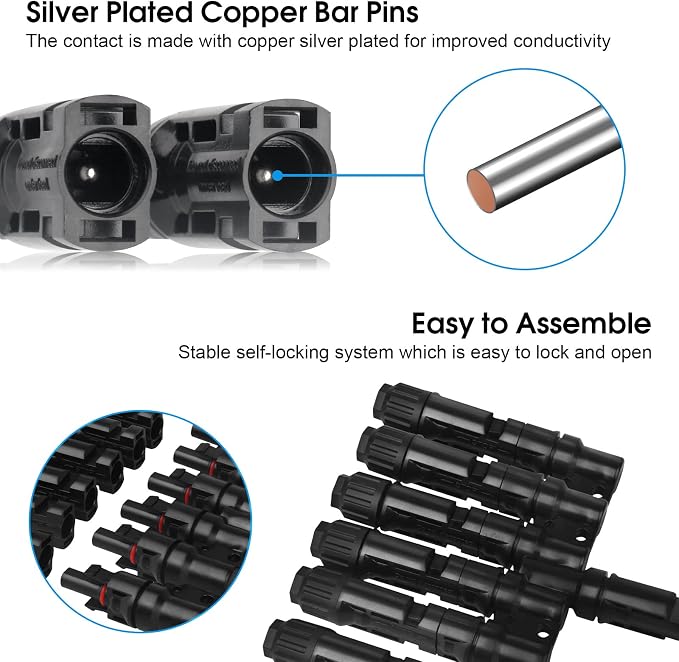

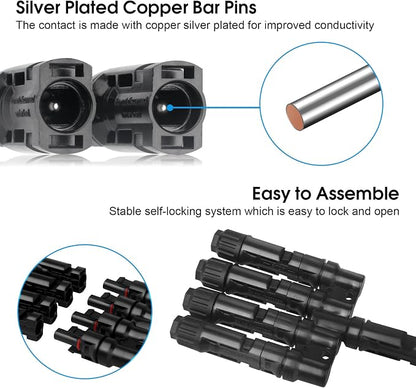

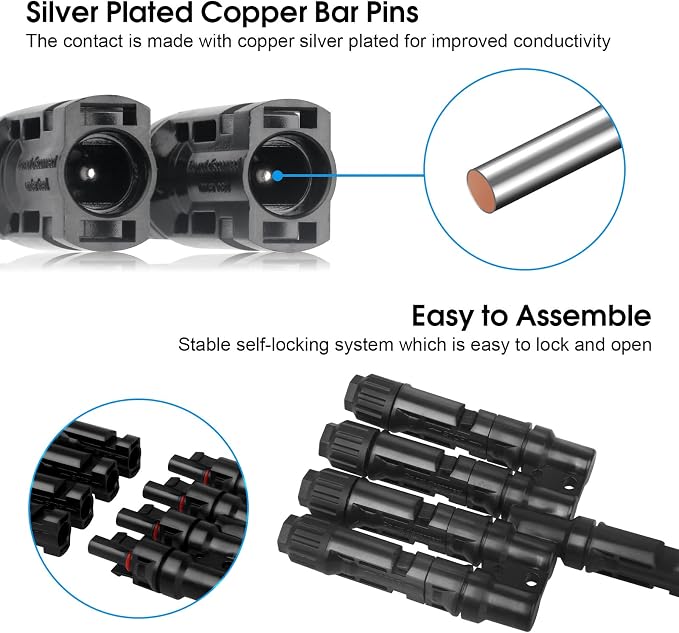

2. PPO insulation material, IP67 waterproof, the contacts are made of silver-plated copper, excellent anti-aging and UV resistance.

3. Easy to install Lightweight and compact, portable and easy to use; Good material make sure the transmission in the stable situation.

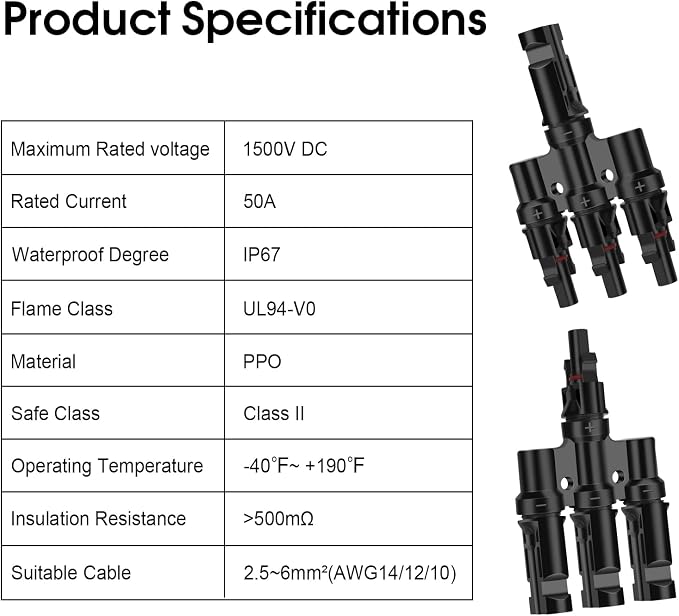

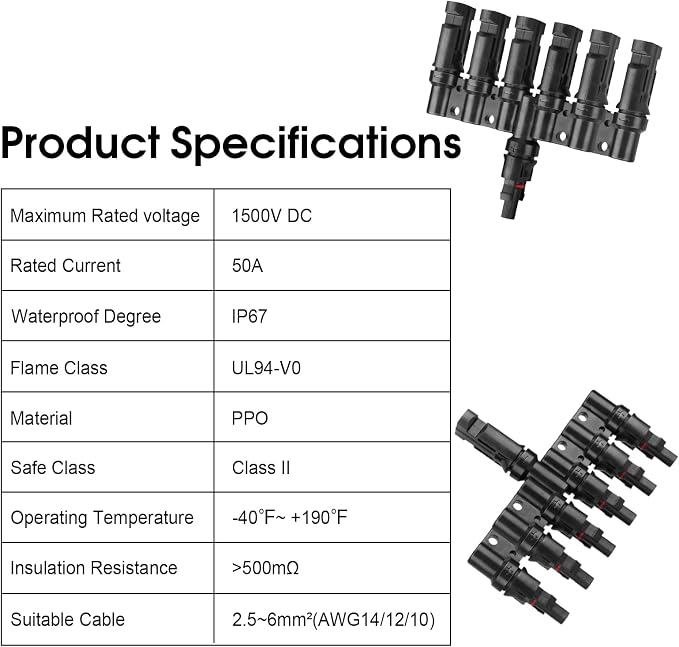

Rated voltage: 1500V DC

Rated current: 50A

Waterproof degree: IP67

Material: PPO

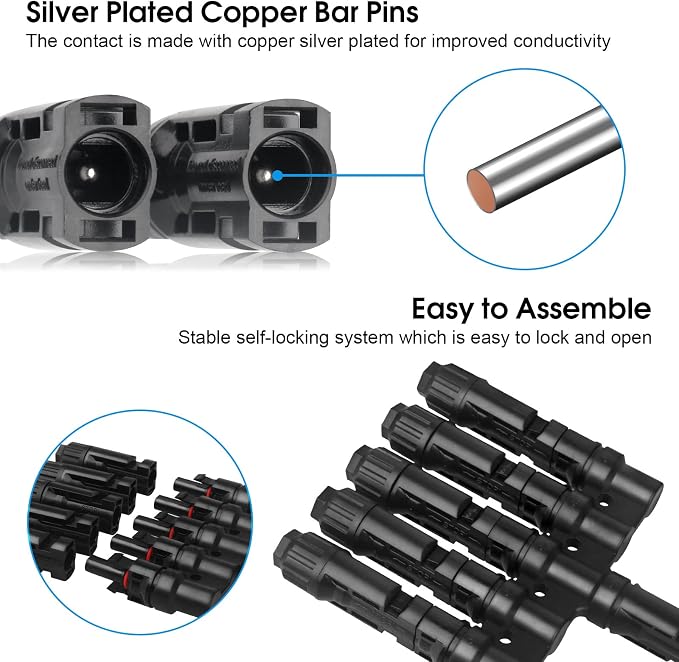

Contact material: Copper sliver plated

Operating temperature: -40°C~+110°C

Flame class: UL94-V0

Suitable cable: 1.31mm²/4mm²/6mm²(AWG18/12/10)

Locking system: Snap in

Connecting system: crimping connection

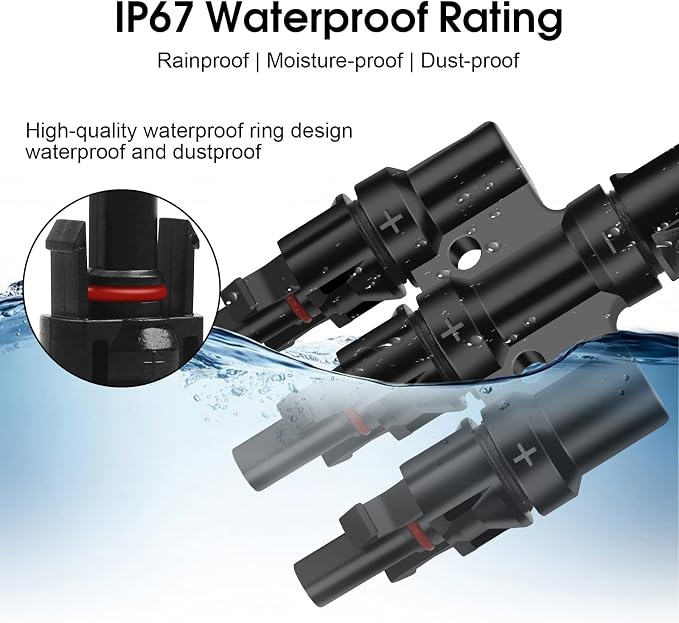

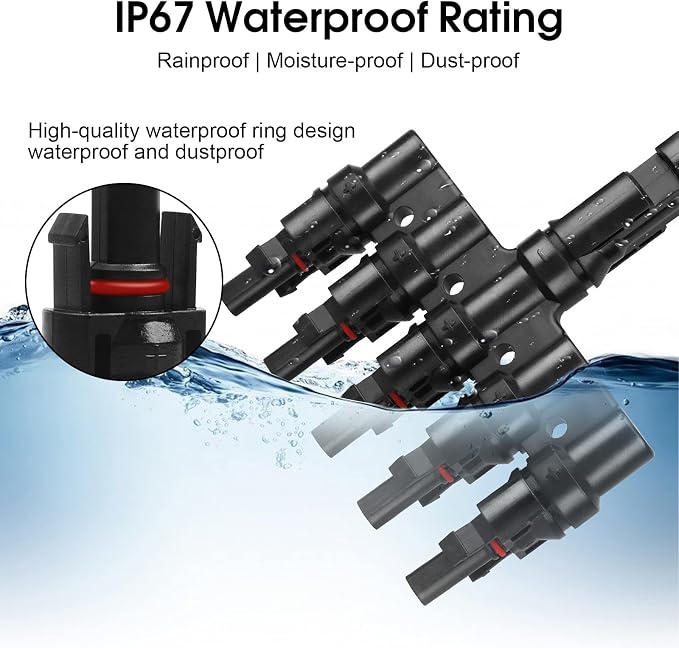

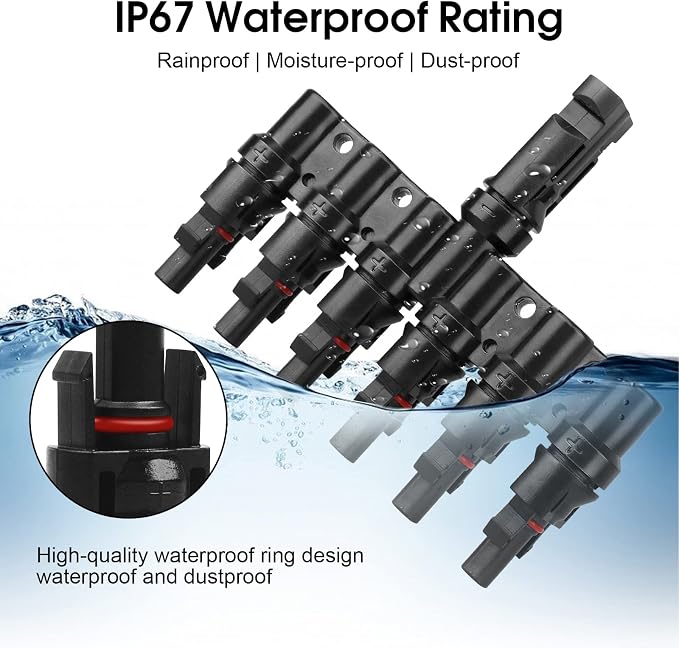

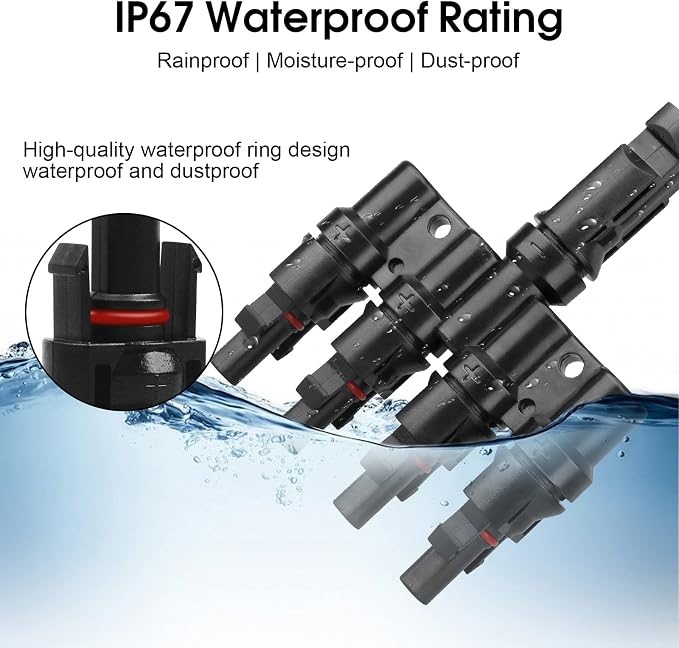

The design of the waterproof ring prevents water and dust from entering the connector and keeps the inside dry and clean. Built-in lock with fine workmanship makes the male and female connectors tightly connected to each other.

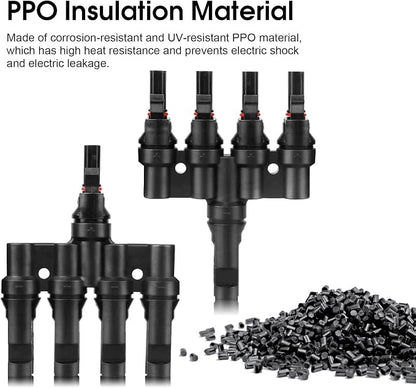

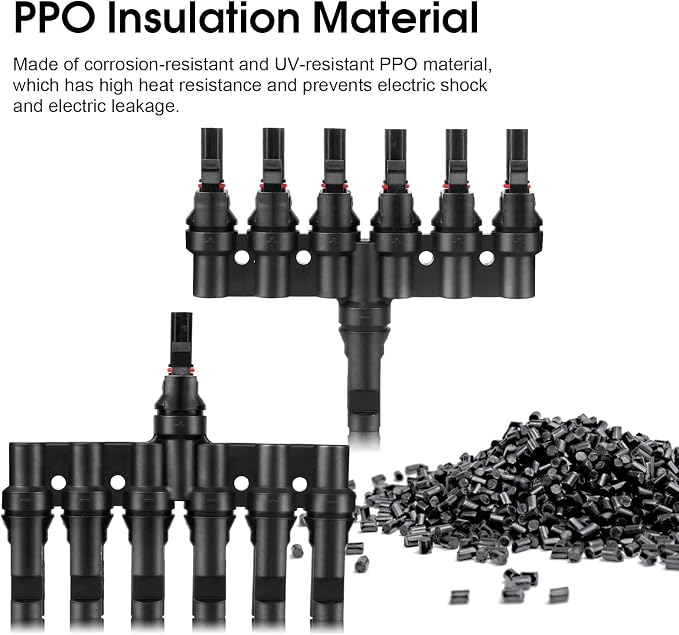

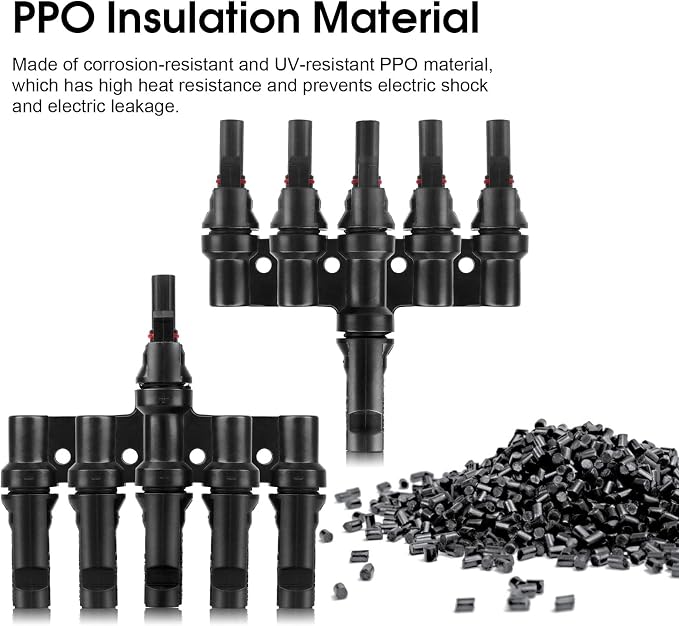

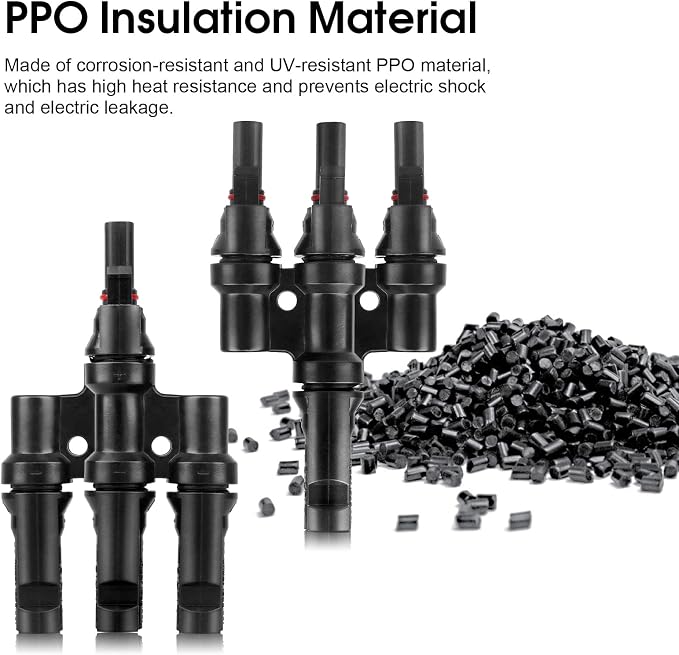

Made of corrosion-resistant and UV-resistant PPO material, which has high heat resistance and prevents electirc shock. Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

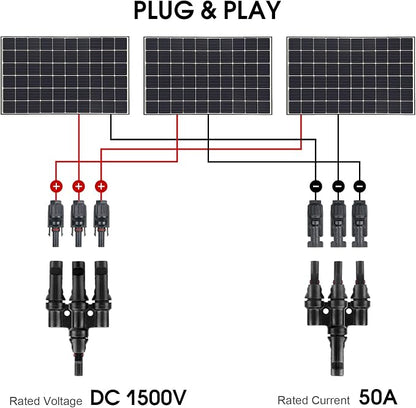

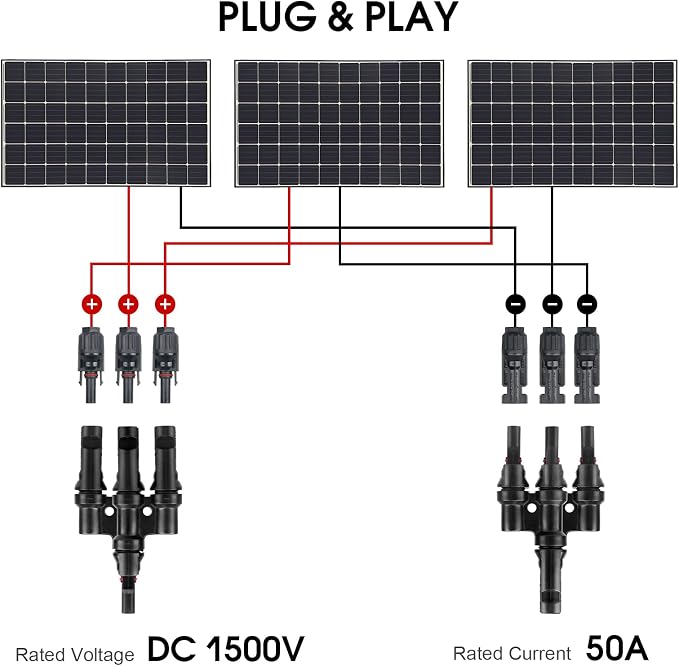

High quality 1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM), it could be used for connecting three solar panels in parallel. It is compatible with solar connectors in 10AWG to 18AWG.
