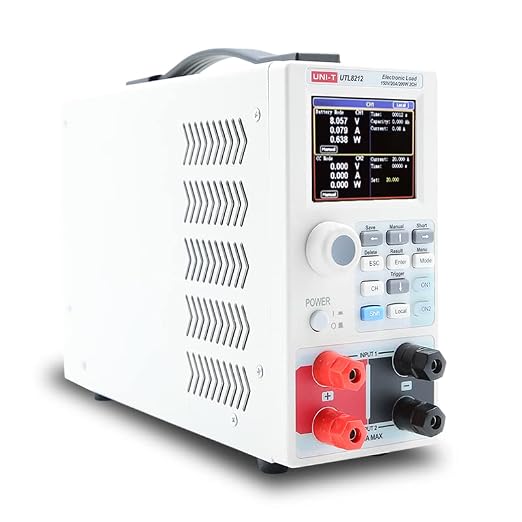

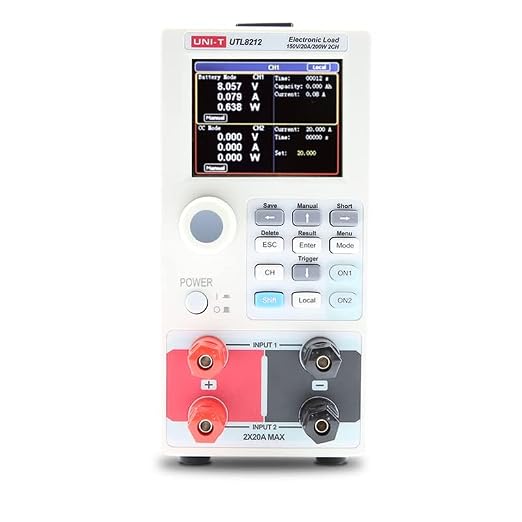

UNI-T UNI-Trend UTL8211+ UTL8212+ Slim Module Ballast High Precision Programmable DC Electronic Load Fast Switching Current Rising 1.5A/μs(UTL8211+)

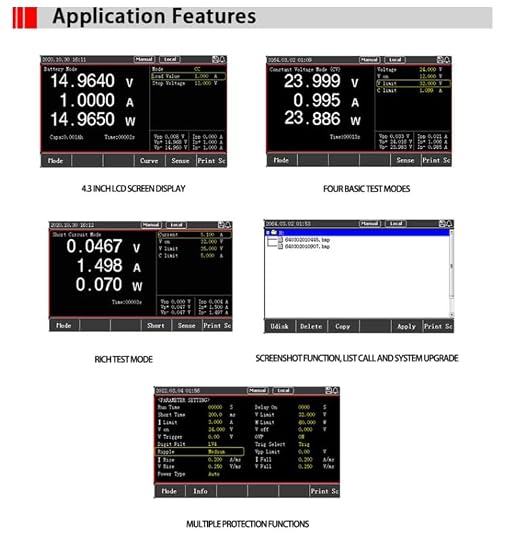

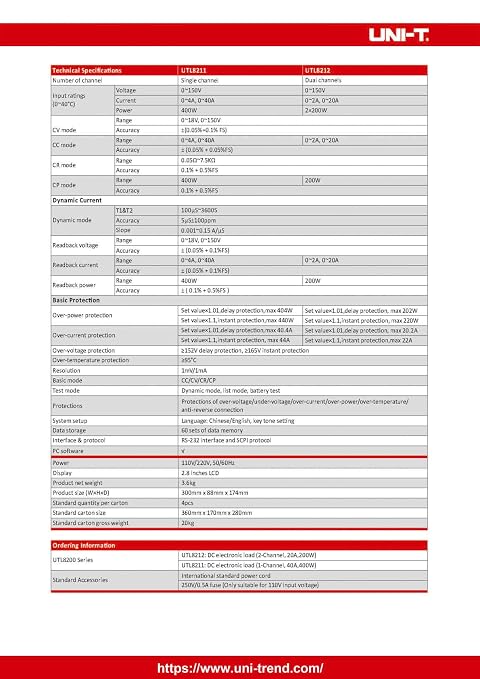

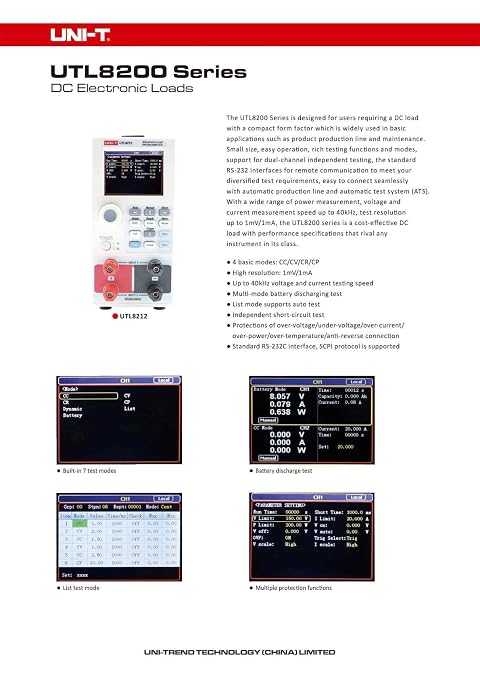

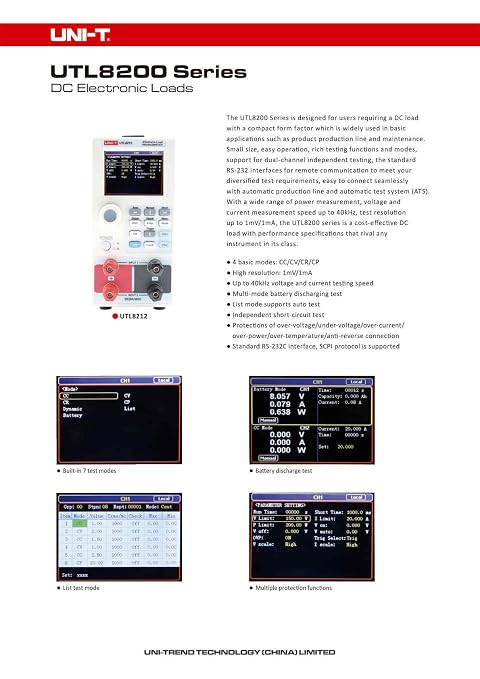

- The UTL8200 Series is designed for users requiring a DC load with a compact form factor which is widely used in basic applications such as product production line and maintenance. Small size, easy operation, rich testing functions and modes, support for dual-channel independent testing, the standard RS-232 interfaces for remote communication to meet your diversified test requirements. - easy to connect seamlessly with automatic production line and automatic test system (ATS). With a wide range of power measurement, voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA, the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class. 150V VOLTAGE 20A/40A CURRENT 400W TOTAL POWER 1mV/1mA RESOLUTION ½ 2U SIZE RS232 CONNECTIVITY - 2.8 inch large screen LCD display Test resolution: 1mV/1mA Voltage test range: 0~150V Current test range: 0~40A (UTL8211+), 0~20A (UTL8212+) Power test range: 0~400W (UTL8211+), 0~200W (UTL8212+) - Built-in 7 test modes 7 working modes: CC/CV/CR/CP/dynamic/list/battery Independent short circuit test function.Multi-mode battery discharge test - Multiple protection functions Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.RS-232C communication interface, intelligent temperature control fan, power-off memory function Standard RS-232C interface: supporting PC software to realize remote operation
