V431000000 Throttle Cable Compatible with Echo Blowers 5-Pack

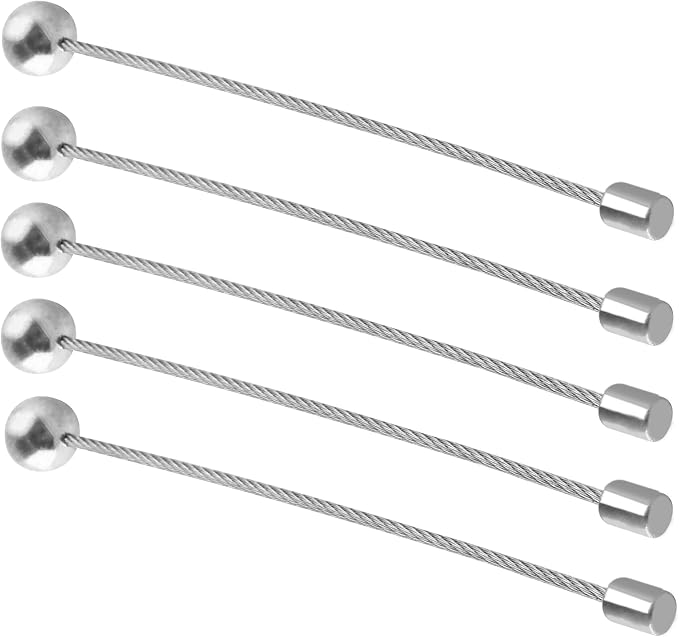

- Product part number：V431000000 Throttle swivel cable - Compatiblity: Compatible with Echo leaf blowers, vacuums, and chipper shredders as, replacement for throttle swivel cable part - Compatible with Models: Compatible with Echo PB-251, ES-250, PB-255LN, PB-252, PB-250LN, PB-250, PB-255, ES-252 - Package Includes: 5 Pack of throttle cable part, Fits Leaf Blower/Vacuum, Chipper Shredder - Easy Replacement: V431000000 throttle swift cable part is easy to install, and damaged throttle swift cables can be replaced in a timely manner to maintain smooth throttle operation and help your outdoor power equipment operate efficiently

Product description

V431000000 Throttle Cable

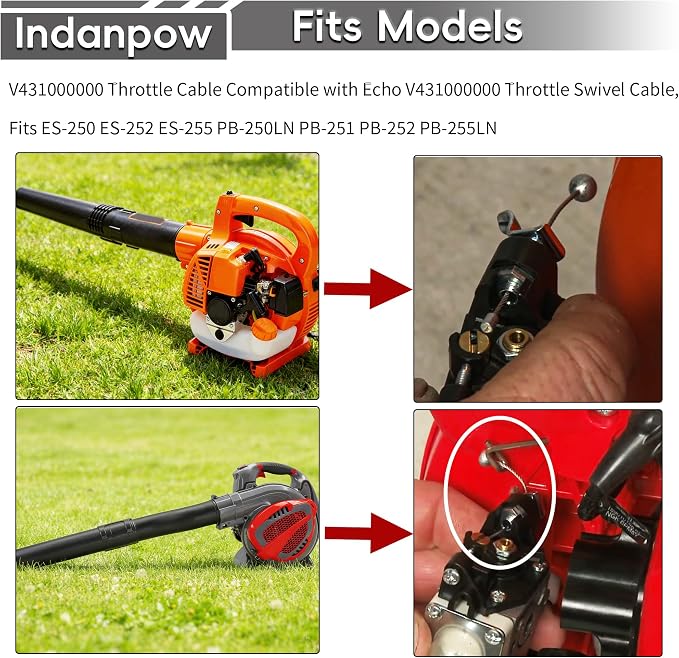

Fits model:

ES-255 S/N: P18812001001 -...ES-250 S/N: P33612001001 - ...ES-250 S/N: P33711001001 - ...ES-250 S/N: P33813001001 - ...ES-250 S/N: P38311001001 - ...ES-250 S/N: P40412001001 - ...ES-250 S/N: P40513001001 - ...ES-250 S/N: P41814001001 - ...ES-252 S/N: P39726001001 - ...ES-252 S/N: P39826001001 - ...ES-255 S/N: P00811001001 - ...ES-255 S/N: P07213001001 - ...ES-255 S/N: P41914001001 - ...PB-250 S/N: P33112001001 - ...PB-250 S/N: P33211001001 - ...PB-250 S/N: P33313001001 - ...PB-250 S/N: P36826001001 - ...PB-250LN S/N: P34712001001 ...PB-250LN S/N: P34811001001 ...PB-250LN S/N: P34913001001 ...PB-250LN S/N: P38211001001 ...PB-250LN S/N: P39926001001 ...PB-250LN S/N: P40212001001 ...PB-250LN S/N: P40313001001 ...PB-250LN S/N: P42814001001 ...PB-251 S/N: 09001001 - 0999...PB-251 S/N: P06113001001 - ...PB-251 S/N: P07611001001 - ...PB-251 S/N: P09012001001 - ...PB-252 S/N: P35620001001 - ...PB-252 S/N: P35720001001 - ...PB-255 S/N: P06213001001 - ...PB-255 S/N: P07711001001 - ...PB-255 S/N: P09112001001 - ...PB-255LN S/N: P35012001001 ...PB-255LN S/N: P35111001001 ...PB-255LN S/N: P35213001001 ...PB-255LN S/N: P42914001001 ...

Part Number: V431000000

Works with the following products:

Leaf Blower / Vacuum, Chipper Shredder

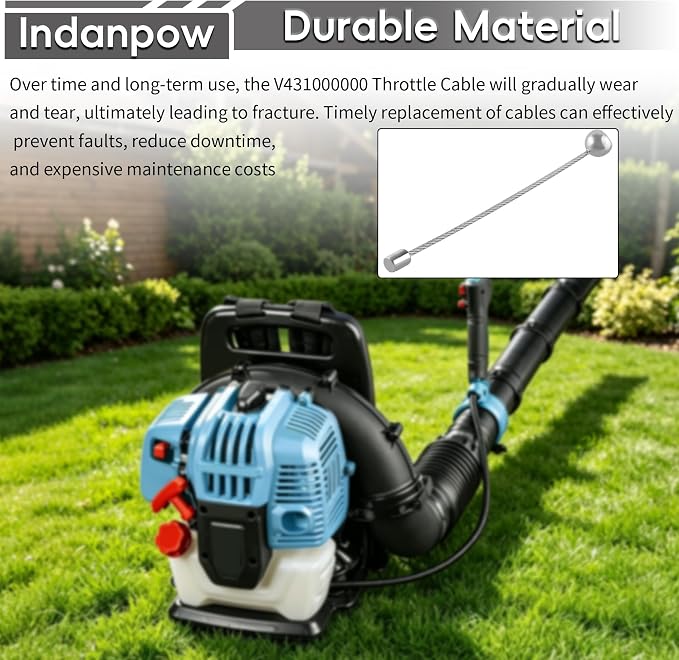

The most common reason for replacing the throttle cable is when the engine doesn’t throttle up when the throttle trigger is depressed

1

Before you replace the throttle cable on your leaf blower make sure the engine has cooled and the on-off switch is in the “off” position.

2

Now loosen the mounting screw to release the air filter cover and pull out the air filter.

3

Use a t-25 torx bit screwdriver to unthread the carburetor mounting bolts.

4

Separate the air filter housing and bolts from the carburetor.

5

If still intact, detach the throttle cable from the linkage.

6

Remove the old cable from the carburetor.

7

Install the new throttle cable by inserting the barrel end through the carburetor cable guide.

8

Confirm that the swivel is properly positioned then depress the throttle lever and align the cable in the swivel.

9

Now attach the new cable to the throttle linkage.

10

Confirm that the cable is aligned with the groove in the cable guide.

11

With the filter housing aligned on the mounting bolts, slide the carburetor onto the bolts followed by the intake manifold gasket.

12

Now thread the bolts into the carburetor spacer and tighten to secure the assembly.

13

Realign the air filter on the filter housing.

14

Reposition the cover and tighten the screw to secure.
